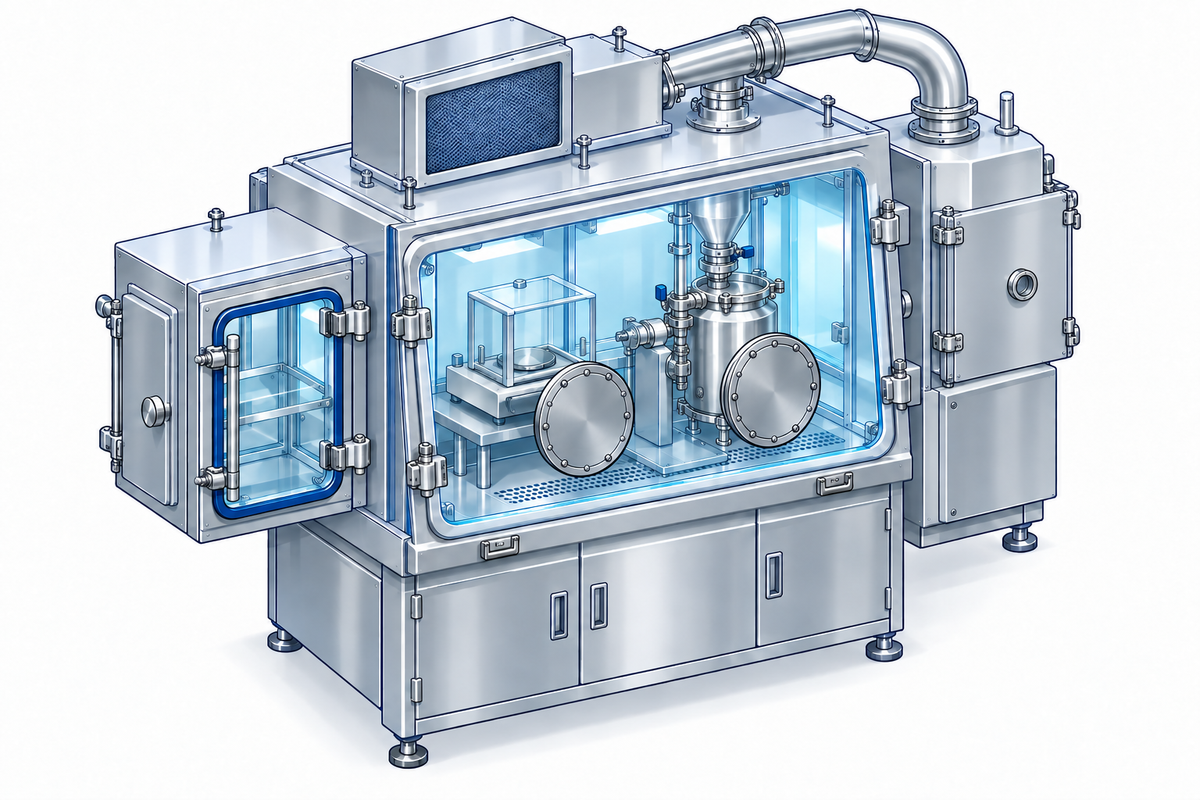

Define the containment boundary before selecting the isolator pressure, glove layout or transfer port. The boundary includes every seal, penetration, glove, door, transfer connection and exhaust path that separates the process material from workers and the surrounding environment. A rigid enclosure with an impressive leak-test result can still release powder during docking, cleaning or replacement of a contaminated component.
The design objective here is occupational and environmental protection during potent-compound handling. An aseptic isolator primarily protects the sterile process; an aseptic containment isolator must satisfy both sets of requirements. The following engineering recommendations address containment isolators and gloveboxes without treating either name as a guaranteed performance class.
1. Translate the task into a functional enclosure
List the operations performed inside: weighing, sampling, charging, sieving, milling, handling intermediates, taking apart product-contact parts and cleaning. Define the material quantities, package sizes, tools, waste containers and sequence. Include the space needed to manipulate partially filled bags, retrieve dropped items and close waste without crossing the boundary.
A process layout should show the location of each task relative to glove ports, viewing windows and transfer points. Equipment inside the enclosure must remain accessible over its intended operating range. Check whether a balance can be levelled, a screen changed or a valve dismantled without requiring an unplanned main-door opening.
The enclosure size follows this functional assessment. Excess volume can increase reach and cleaning difficulty; inadequate volume encourages overcrowding and improvised transfers. Review the design with representative operators and maintenance personnel using a physical or suitably realistic mock-up. Capture observed limitations as design actions with measurable closure criteria.
2. Distinguish pressure control from physical integrity
Negative pressure relative to the surrounding room can contribute to inward airflow through an unintended opening. Its usefulness depends on the enclosure, extraction system, opening geometry and disturbance. It does not replace a robust boundary or establish performance during every task. The pressure target and permissible variation require a site-specific engineering rationale.
Leak tightness characterises a defined enclosure test condition. Containment performance evaluates emissions during specified operations. An enclosure can pass a static leak test and perform poorly during a transfer; a pressure indication can remain acceptable while a contaminated surface is exposed outside. Specify these as complementary tests with separate acceptance criteria.
Document operating modes such as standby, production, transfer, cleaning, decontamination and maintenance. Identify which modes require pressure control, the conditions for transition and the response to loss of extraction. The safe state may involve stopping powder movement while maintaining extraction; it should be defined through the failure assessment, not assumed from a generic shutdown command.
3. Engineer the airflow and exhaust path
Locate air inlets and extract points with the task and powder behaviour in mind. Avoid disturbing weighing or creating patterns that spread material unnecessarily across the chamber. Evaluate obstructions from internal equipment, stored materials and operator movements. Where airflow visualisation supports understanding, select a method compatible with the system and the question being investigated.
Assess the complete exhaust train: enclosure connection, prefiltration where justified, final filtration, ductwork, fan, discharge and controls. Consider powder accumulation, filter loading, pressure losses and the ability to isolate contaminated sections. A nominal HEPA rating describes filtration capability under defined conditions, not containment of the entire process.
Review fan failure, power interruption, damper malfunction and exhaust-system interaction with other equipment. Determine whether redundancy or backup power is justified and what monitoring detects a degraded condition. Test the physical response across the operating envelope. An alarm generated from a software simulation alone cannot prove that the enclosure remains controlled during a real extraction failure.
4. Specify gloves as engineered components
Glove selection requires compatibility with the compound, cleaning agents, solvents and other relevant exposures. Evaluate material, thickness, dexterity, permeation concerns, abrasion and repeated flexing. Mechanical integrity and chemical protection are different properties. A glove that passes a leak test is not automatically suitable for prolonged contact with a particular solvent.
Port position, diameter, spacing and glove length affect both reach and fatigue. Assess work with the required inner gloves and clothing, using representative users. Avoid sharp edges, pinch points and forced postures. Operators should be able to manipulate closures and clean critical surfaces without stretching the glove beyond its intended use.
Define installation, inspection, integrity testing where appropriate, replacement and response to damage. Criteria and frequency should follow risk, supplier information, qualification and operating experience. There is no universal glove leak criterion or replacement interval for every potent-compound isolator. Record component identity and changes so that performance evidence remains linked to the installed configuration.
5. Treat transfer systems as part of the barrier
Select transfer interfaces around the source, destination and operation. A rapid transfer port joins compatible alpha and beta components to establish a controlled transfer interface. A split butterfly valve connects complementary valve halves for contained material transfer. Their functions and failure mechanisms differ, and neither designation automatically establishes sterile transfer.
For each interface, review docking alignment, seals, locking, closure verification, residual contamination and disconnection. Identify surfaces exposed when components separate and how those surfaces are managed. Include incomplete or incorrect docking in the risk assessment. Where interlocks are relied upon, test their relationship with the actual mechanical state.
Continuous liners and flexible connections can extend containment during discharge or waste removal, but seams, closure, support and cutting operations matter. Define how a filled liner is sealed and removed, how the remaining sleeve is protected and how a damaged liner is handled. The overall process must be assessed with the intended consumables and working method.
6. Design cleaning and maintenance access
Internal geometry should permit the chosen cleaning method to reach relevant surfaces. Review seals, corners, glove sleeves, undersides, penetrations and shadowed areas behind process equipment. Containment and cleanability can conflict: a deeply enclosed assembly may protect the operator during production while making residue removal difficult. Resolve the conflict during design.
If wet cleaning is intended, address drainage, liquid retention, cleaning-agent compatibility, electrical protection and contaminated effluent. If dry cleaning is proposed, evaluate dust mobilisation and the suitability of dedicated extraction or vacuum equipment. Do not prescribe an ordinary vacuum cleaner or compressed-air cleaning for potent residues.
Prepare a maintenance access map. List components changed from outside, components requiring decontamination and those that require opening the process boundary. Safe-change filters, replaceable gloves and removable instruments need specific procedures and physical provision. A design is incomplete if a technician must improvise temporary containment at the first service intervention.
| Interface | Design question | Evidence needed |
|---|---|---|
| Glove and port | Can the task be completed without excessive reach or damage? | Ergonomic demonstration, compatibility review and integrity strategy |
| Transfer chamber | How are external and internal surfaces controlled? | Transfer sequence, interlock challenge and cleaning assessment |
| Exhaust filter | How is the loaded filter removed and packaged? | Safe-change demonstration and occupational assessment |
| Main access door | What conditions permit opening? | Isolation, decontamination, clearance and release procedure |
| Instrument penetration | Does servicing expose a contaminated path? | Detail drawing, service method and restoration checks |
7. Resolve the sterile containment interface
Aseptic processing introduces product-protection requirements, including the critical zone, transfer of sterile materials and contamination control. These cannot be inferred from a containment test. Similarly, an aseptic qualification or biodecontamination cycle does not demonstrate worker protection against potent residues. The system must have an explicit dual-purpose design basis.
Pressure relationships should be considered across nested spaces and interfaces, with a clear understanding of where material or contamination could move. Consult the sterile-process and occupational specialists together. A negative-pressure arrangement may create product-protection challenges if an opening occurs; a positive-pressure arrangement may challenge occupational containment. Neither sign is a complete strategy.
For relevant EU sterile manufacture, apply Annex 1 within its intended scope and the site contamination control strategy. Keep biological decontamination, removal of chemical residues and occupational clearance distinct. A process that reduces microorganisms may leave pharmacologically active material, and chemical cleaning may not establish the required microbiological state.
8. Define controls, alarms and recovery
Develop a cause-and-effect matrix linking critical conditions to process actions. Include pressure deviation, extraction failure, filter differential pressure, door state, transfer-lock state and relevant glove-test status. Decide which conditions prevent starting, require an orderly stop or demand immediate containment action. Alarm priority should reflect the risk and the operator response needed.
The human-machine interface should show the operating mode, the condition requiring action and the permitted recovery steps. Avoid ambiguous “reset and continue” behaviour after a boundary failure. Authorised recovery may require inspection, cleaning, investigation or repeat testing before production resumes. Define who can clear the restriction and what evidence supports that decision.
Where records support GMP decisions, address data integrity and the applicable computerised-system requirements. At the same time, retain occupational events and maintenance history needed for exposure-control review. A pressure trend without task context may conceal a transient associated with docking; synchronised event and process information makes investigation more useful.
9. Build an integrated verification plan
Start with DQ against the URS and risk assessment. At FAT, verify accessible functions, controls, mechanical interfaces and representative task feasibility. After installation, confirm utilities, extraction and room interfaces, then challenge operating modes and failure response. Define what evidence remains valid after transport and what must be repeated at the site.
Containment performance testing should represent critical tasks, not only steady operation with closed doors. The protocol should address surrogate suitability, task sequence, operators, sampling, analytical capability and data interpretation. Use the current licensed SMEPAC guidance where the study is described as following SMEPAC. State all deviations from the agreed method.
After handover, assess actual workplace exposure under the approved occupational hygiene strategy. A successful surrogate test does not automatically establish compliance with the compound OEL across production, cleaning and maintenance. Link observed performance to training, approved work methods and the operating envelope, and define triggers for reassessment after changes or breaches.
10. Review an example before design freeze
A dispensing isolator has a suitable exhaust system and adequate space for the balance. During a mock-up, the operator cannot remove a sample from the far side without pulling a glove taut against a sharp bracket. The design team also discovers that the sample container exits through a transfer chamber whose external surfaces are not addressed by the cleaning procedure.
The corrective design moves the sample location, changes the bracket and revises the transfer sequence. It adds ergonomic checks to acceptance and includes sample removal in the containment study. These changes are more effective before fabrication than attempting to solve the same problems through restrictive instructions after commissioning.
The example shows why isolator design cannot be reduced to enclosure pressure and filtration. The task, human interface and every transfer boundary determine whether the equipment can be operated as intended. A well-specified system supports the correct method without requiring constant improvisation.
Design-review checklist and red flags
- Confirm that every task, tool, container and waste stream fits the functional layout.
- Identify all boundary penetrations and the consequences of their failure.
- Separate pressure criteria, leakage criteria and task performance acceptance.
- Check glove compatibility, reach, replacement and integrity management.
- Examine docking, undocking and exposed surfaces at each transfer.
- Demonstrate cleaning and service access with realistic equipment installed.
- Challenge extraction and control failures through the complete physical system.
- Distinguish aseptic protection from occupational containment where both apply.
- Define the evidence required before opening, recovery and return to service.
Red flags include an unexplained pressure setpoint, a universal OEB performance claim, filter changes excluded from scope, gloves selected only by dexterity and a study that omits the most difficult transfer. Resolve them as engineering decisions before commercial acceptance.
The final design dossier should connect approved drawings, component specifications, control logic, test evidence and operating instructions. Changes to gloves, seals, extraction, transfer hardware or cleaning methods must be assessed against that dossier. Sustained containment depends on preserving the demonstrated configuration and recognising when new evidence is needed.
Sources, scope and engineering recommendations
Source status checked on 25 September 2026. Apply each document within its jurisdiction and scope. GEP and GuideGxP recommendations are engineering advice, supported by risk assessment; examples are illustrative. For copyrighted standards and ISPE guides, the public scope and edition were verified; detailed licensed protocols are not reproduced.
- [REGULATORY REQUIREMENT] European Commission — EudraLex Volume 4, Chapters 3 and 5.
- [REGULATORY REQUIREMENT] European Commission — EU GMP Annex 1: Manufacture of Sterile Medicinal Products.
- [OCCUPATIONAL HEALTH REQUIREMENT / GUIDANCE] HSE HSG258 — Controlling Airborne Contaminants at Work.
- [GUIDANCE] ISPE — SMEPAC, third edition: Airborne Particle Emissions from Containment Systems.
- [GUIDANCE] WHO TRS 957, Annex 3 — GMP for Products Containing Hazardous Substances.
