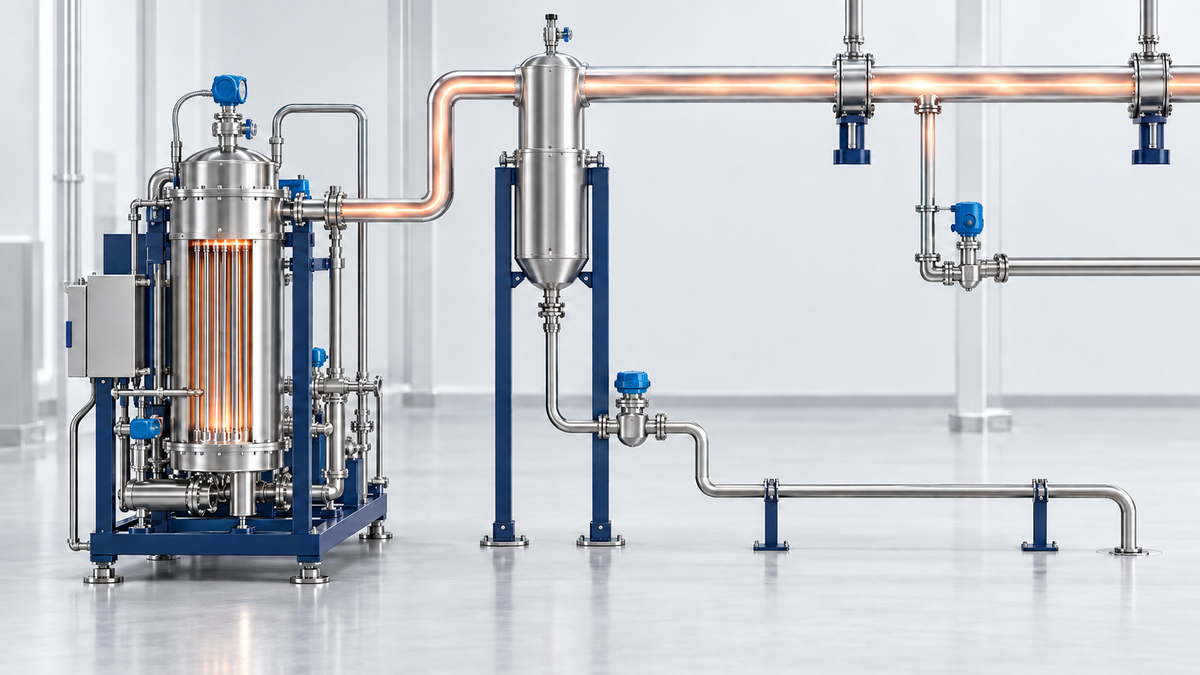

Design the steam route, not only the generator
A clean steam system must deliver suitable steam at the connection where the process uses it. Generator performance is necessary, but distribution can add condensate, pressure instability, retained air or contamination. The engineering boundary therefore extends from feed-water supply through generation, separation, headers, branches, drainage and the final user assembly. The equipment receiving steam remains responsible for its own validated process.
This article addresses the utility. It does not define a steam-in-place cycle, autoclave load pattern or sterilization acceptance criterion. The design choices described are GuideGxP engineering recommendations to be justified in the site URS and risk assessment. Numerical slopes, pressures, velocities, surface finishes and component ratings must follow the applicable design basis and verified operating requirements, not a universal pharmaceutical rule.
Define what clean steam means for the application
Plant steam is generally produced for site heating or energy transfer and may involve boiler treatment chemicals. It cannot be assumed suitable for direct contact simply because it is hot. Clean steam or pure steam terminology must be tied to an approved specification and intended use. A name on a supplier brochure is not sufficient to establish chemical quality, endotoxin control or physical characteristics at the user connection.
For EU sterile manufacturing, Annex 1 provides specific expectations for steam used as a direct sterilizing agent. Its condensate requirements have a defined application, including direct sterilization of materials or product-contact surfaces. That is different from steam heating an isolated jacket. Document the contact route and relevant failure modes before selecting the quality strategy. The site's applicable pharmacopoeial and process requirements determine what the generator must consistently deliver.
Build an interface specification for feed water
Specify feed-water quality, temperature, pressure, available flow and variability at the generator inlet. Assess chemical contaminants, endotoxin risk and substances that can concentrate or carry into steam. Appropriate purification is part of the control strategy, but the required feed grade should be justified against generator design and final steam requirements. Do not state that every generator must always receive the same compendial water grade.
The steam package and water-system owners should agree what happens when the feed is unavailable or outside its approved condition. Define alarms, interruption, recovery and the evidence required before steam can again supply critical users. Water-system sanitization can also affect the generator through temperature changes or residual chemicals. Treat this as an operational interface, not merely a pipe size on a drawing.
Review the heating side separately. Where plant steam transfers heat across an exchanger, examine pressure relationships, leakage mechanisms and detection. Materials and construction must support the approved separation between heating medium and clean steam. A suitable heat-transfer arrangement does not eliminate the need to evaluate degradation, maintenance damage or abnormal pressure conditions across the barrier.
Size for changing demand and stable operation
Develop demand profiles for normal production, simultaneous warm-up, intermittent users, low-load operation and recovery after a shutdown. Warm-up can challenge the system differently from steady operation because cold metal generates substantial condensate. Nameplate mass flow should be checked against the feed conditions, heating supply and delivery pressure used for the supplier's rating. Compare suppliers on the same basis.
Avoid treating a large capacity margin as an automatic improvement. An oversized generator may spend much of its life near its least stable operating region. Consider minimum controllable output, start-stop behaviour, level control, separator performance and recovery time. If scheduling limits simultaneous demand, the operating restriction and any automatic enforcement should be documented and verified. Future capacity should be a separate scenario with explicit assumptions.
Understand evaporation, separation and carryover
The generator must produce vapour while controlling entrainment of liquid droplets. Droplets can carry concentrated contaminants from the water side, making separator performance a quality issue as well as an engineering matter. Evaluate performance across the specified load range and during rapid demand changes. A satisfactory sample at stable mid-load does not fully challenge carryover during an abrupt increase in steam draw.
Review level measurement, feed control, blowdown where applicable and the response to foaming or abnormal operation. The supplier should identify its design limits and the conditions that invalidate guaranteed performance. Maintenance of internal separation devices must be possible and documented. An accessible inspection route can be more valuable than a nominal feature whose condition cannot be checked after installation.
Treat the distribution as a thermal and hydraulic system
Estimate pressure losses along the most demanding routes, including fittings, isolation valves, regulators and the final assembly. Select pipe sizes using the agreed demand cases and engineering criteria. The operating pressure at the generator is not the same as the pressure available during flow at the user. Record where pressure is measured and whether values are absolute or gauge.
Steam condenses as it transfers heat to pipework and the surroundings. Insulation reduces heat loss, but does not remove the need for drainage, warm-up control or maintenance access. Pipe supports and expansion arrangements should preserve the intended geometry during thermal cycling. A slope that exists on a cold installation drawing may be compromised by support movement, sagging or later modifications.
Design branches to limit entrained condensate reaching users and to allow predictable drainage. Evaluate takeoff orientation, low points, valve positions and transitions. Do not import a single geometric rule without checking flow direction, equipment arrangement and the adopted design standard. The acceptance evidence should include the installed route and its behaviour, not only the supplier's standard detail.
Engineer condensate removal and air clearance
Identify where condensate forms during warm-up and steady demand, and provide appropriate collection and removal. A trap must be suitable for its duty, pressure differential, condensate load and downstream conditions. Correct nominal sizing is insufficient if the discharge line creates excessive backpressure or the installation prevents condensate from reaching the trap. Review discharge routing and any shared collection network.
Traps may fail in ways that cause retained condensate or waste steam. Specify how their condition is checked and how failed units are isolated and replaced. A common return arrangement can connect risks between users; assess pressure reversal and contamination transfer where relevant. Do not assume that all clean steam condensate can be returned to the generator as feed without a separate quality and engineering justification.
Air and other non-condensable gases must have a credible removal path during start-up and operation where relevant. A hot pressure reading does not prove that every branch has cleared air. Evaluate venting arrangements, terminal sections and intermittent users. The utility should provide suitable supply conditions, while air removal within a sterilizer load or SIP circuit remains part of that process's own engineering and validation.
Define the final user assembly
At each interface identify isolation, pressure reduction if needed, drainage, instrumentation and sampling. Examine how a regulator changes pressure and thermal conditions, including the potential for superheat after pressure reduction. Specify the conditions required at the receiving equipment rather than assuming a regulator outlet automatically provides suitable saturated steam. Sampling locations should represent the boundary being claimed.
Ownership downstream of the connection must be explicit. The utility team may own the header and station while the process team owns a steam inlet valve, equipment drain and cycle control. Allocate responsibility for each trap, sensor and interlock without leaving an unowned gap. Coordinate maintenance so that replacing one component does not silently invalidate the other team's qualification assumptions.
| Design decision | Risk to assess | Evidence expected |
|---|---|---|
| Generator selection | Unstable low load or inadequate simultaneous demand | Common rating basis and verified operating envelope |
| Separator arrangement | Liquid carryover during demand changes | Design review and challenge results |
| Header and branch routing | Condensate retention or excessive pressure loss | As-built inspection and performance trends |
| Trap and discharge network | Flooding, backpressure or cross-transfer | Duty calculation, routing review and functional checks |
| Pressure-reduction station | Unsuitable conditions at the receiving equipment | Local measurements and applicable steam-quality tests |
| Sampling arrangement | Non-representative sample or contamination by the cooler | Qualified arrangement and documented conditioning |
| Standby source | Unverified quality after changeover | Approved standby and return-to-service challenge |
Make instrumentation answer specific questions
Choose measurements by function: generator level and pressure for control, local pressure for delivery, temperatures for thermal behaviour, and suitable analytical measurements for relevant quality attributes. Define range, accuracy, response time, installation and calibration access. A measurement used to release the utility needs a different justification from an indicator used only to help maintenance diagnose a problem.
Alarms should distinguish unacceptable conditions, sensor failures and loss of communication. Define the required action and the relationship to affected users. If steam supply is interrupted, specify whether demand is blocked, isolated or transferred to a verified alternative. Preserve time-aligned records needed to investigate a pressure or quality event. An instrument list without these decisions does not constitute a monitoring strategy.
Plan start-up, standby and recovery
Define the sequence for warming the system, removing condensate and establishing acceptable delivery before critical use. The permissive should reflect the qualified operating strategy. Do not equate one warm sensor with a fully conditioned network. Rarely used branches may require a defined preparation before demand, and the associated time and steam consumption belong in the production plan.
Redundancy must address common dependencies such as feed water, heating steam, controls, power and headers. A second generator may improve equipment availability while leaving all users vulnerable to a single header fault. Compare central and distributed alternatives using failure consequences, maintainability and verified recovery. A standby source requires its own quality assurance and changeover verification, including the period after prolonged inactivity.
Worked example: a distant user becomes wet after expansion
In a fictional facility, a new steam consumer is added to an existing header. The generator retains apparent capacity, but a distant user begins receiving wetter steam during concurrent start-up. The engineering team compares demand timing, local pressure, trap condition, insulation changes and the discharge network. It does not immediately replace the generator because the symptom could originate in distribution or drainage.
The review finds that the expansion changed both the peak demand and condensate discharge conditions. The response is to correct the identified restriction, update the demand model and verify representative locations under the new overlap scenario. Condensate chemistry is checked separately where the change could affect it. Successful utility verification supports supply release, but affected SIP or sterilization processes still require their own impact assessment and any necessary validation work.
Qualify the installed system and prepare lifecycle control
The design review should connect user requirements to drawings, construction specifications and acceptance tests. FAT can challenge generator controls and selected performance, while installation verification addresses actual materials, routes, instruments and drainage. Operational testing should include relevant load extremes, alarm behaviour, shutdown and recovery. Performance verification should examine representative distribution locations and user interfaces under justified conditions.
Retain as-built drawings, material and joining records where specified, calibration evidence, software configuration, test data and operating instructions. Set maintenance and review frequencies from duty, failure history, component recommendations and quality risk. Trap management, insulation repair and support inspections belong in lifecycle control because they can affect delivery quality. Changes in production scheduling can also require review even when no pipework is modified.
Design-review checklist
- Intended use and clean/pure steam terminology refer to an approved specification.
- Feed water and heating-medium interfaces have assigned owners and failure responses.
- Capacity covers justified demand cases and stable minimum operation.
- Carryover, condensate removal, air clearance and pressure reduction are assessed.
- Installed geometry remains suitable during thermal expansion and maintenance.
- Every user boundary has clear ownership, sampling access and delivery requirements.
- Standby, warm-up and return to service are defined operating modes.
- Utility qualification and receiving-process validation remain distinct but coordinated.
Connected areas and authoritative references
Develop the water interface with Pharmaceutical Water & WFI Systems. For steam use inside equipment, continue with Cleaning, CIP & SIP Systems. Sterile process connections also relate to Aseptic Fill-Finish & Barrier Systems. Return to Critical Utilities Systems for quality testing and lifecycle decisions.
- [GUIDANCE] EU GMP Annex 1 (2022) and Annex 15 (2015): current official GMP framework, applied within the relevant product scope.
- [TECHNICAL STANDARD] ASME BPE-2026: published technical standard for bioprocessing equipment; catalogue scope reviewed, project adoption and transition assessed separately.
- [TECHNICAL STANDARD] EN 285:2015+A1:2021: current large-steam-sterilizer standard; applicability to an interface must be justified. Protected requirements and tables are not reproduced.
