Design a powder transfer as a sequence of boundary changes, not simply as a pipe connection. Charging and discharging can expose contaminated mating faces, package exteriors, liners and residual powder even when the material moves through a nominally closed route. The engineering decision is how to preserve effective containment from the incoming package to the receiving process and through disconnection, cleaning and waste removal.

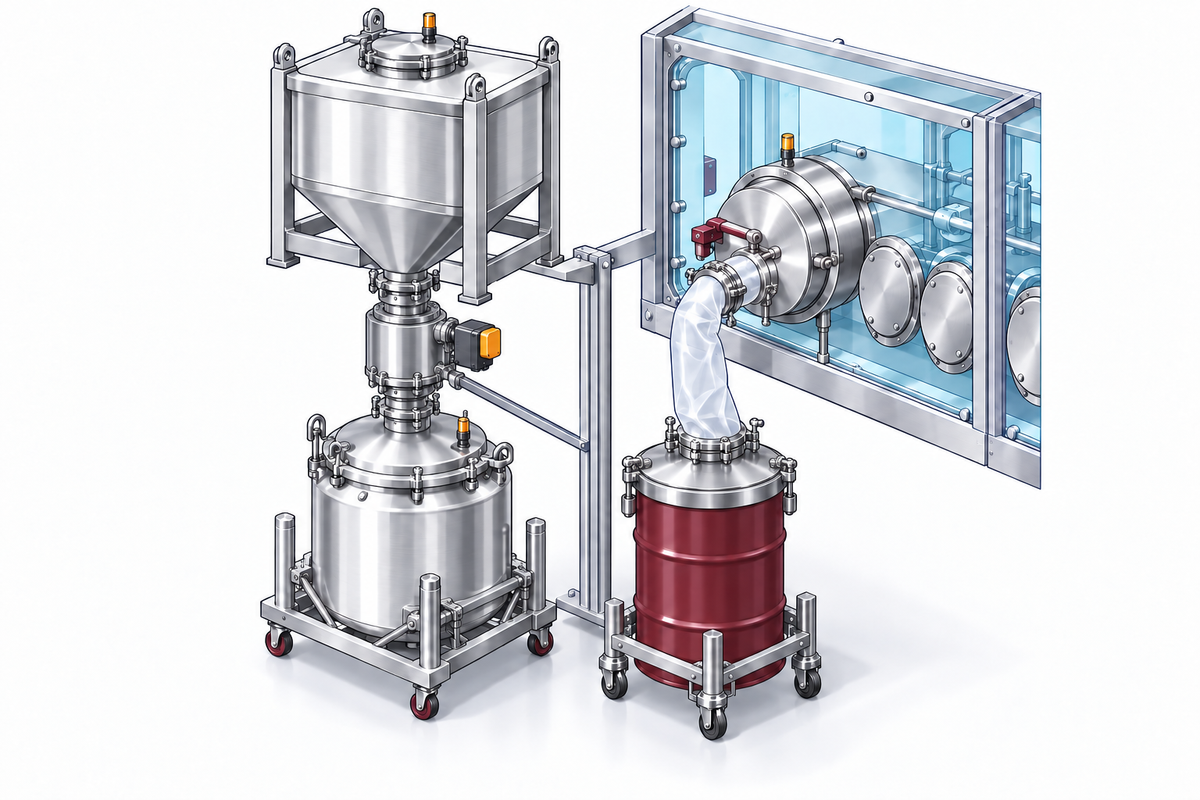

This article covers contained transfer of potent powders using split butterfly valves, rapid transfer ports, liners and closed transfer systems. It addresses occupational exposure and cross-contamination interfaces. Sterile transfer adds separate requirements for microbiological control; successful containment performance does not by itself establish an aseptic transfer capability.
1. Define the transfer envelope
Document the powder properties relevant to movement and release: flowability, tendency to bridge, dust generation, adhesion, particle behaviour and sensitivity to moisture. Include process quantities, package dimensions, transfer frequency, acceptable residues and the receiving equipment's pressure conditions. Evaluate combustible-dust properties separately when applicable.
Identify how material enters the system, where displaced gas goes and how the transfer ends. Consider both normal operation and a partially completed transfer. A blocked line, incomplete emptying or loss of extraction can create an intervention that is more difficult to contain than routine material movement.
Record occupational exposure criteria through competent toxicological and occupational hygiene input. Keep product carryover limits and environmental discharge criteria distinct. The transfer design may contribute to all three objectives, but a single numerical limit should not be adopted across them without a justified scientific basis.
2. Map each interface and boundary transition
Create a step-by-step diagram covering preparation, docking, connection verification, opening, transfer, closure, disconnection, external cleaning and disposal. Mark which surfaces contact powder, which surfaces remain clean and which may become contaminated through foreseeable errors. Include the tools and operator hands used at each step.
Identify ownership at supplier boundaries. The vessel supplier may provide an outlet valve while another supplier provides a container or docking station. Confirm mechanical compatibility, control signals, pressure limits, alignment and cleaning responsibilities. A statement that components are individually compatible is weaker than a verified description of the assembled transfer.
Review the complete route with representative packaging. Bag folds, drum liners, container tolerances and damaged seals can alter the interaction. Where manual alignment is necessary, consider positioning aids and the consequences of loading the connection unevenly. The operator should be able to verify a safe connection without placing their face or hands near a potentially contaminated opening.
For IBC transfers, verify support, docking alignment and venting under the intended fill conditions. Include contained sample withdrawal, sample-container closure and removal in the transfer sequence so that sampling does not introduce an unassessed opening between otherwise closed steps.
3. Split butterfly valves: examine the full cycle
A split butterfly valve uses complementary valve halves to create a transfer interface. Its containment capability depends on design, seals, mating surfaces, docking and operation. Do not assume that all split-valve designs have equivalent cleaning features, residual behaviour or performance evidence.
Evaluate how the halves align, lock, open and close, and how incorrect sequencing is prevented. Examine the surfaces exposed after separation and the potential for trapped powder near seals or between mating components. Include inspection and cleaning methods for those surfaces in the operating sequence.
Assess powder accumulation, wear and repeated docking. A demonstration with a new valve and a freely flowing surrogate may not represent an adhesive material or a valve near its service limit. Specify relevant inspection criteria, maintenance instructions and replacement responsibilities. Any supplementary cleaning or decontamination feature needs its own defined purpose and verification.
4. Rapid transfer ports and transfer containers
Rapid transfer port systems can provide a controlled interface between an enclosure and a compatible container or device. Confirm the exact port arrangement, container configuration and intended transfer operation. The term RTP describes an interface concept; it does not establish a universal containment result or microbiological claim.
Review docking integrity, door movement, interlocks and the surfaces that become exposed during opening. Determine how containers are prepared, transported, connected and removed. Consider the consequences of a damaged seal, an incompatible container or an attempt to undock before the intended closure sequence is complete.
Check whether the transfer requires additional manipulation inside the enclosure. A secure port can still be associated with difficult bag handling, dropped tools or inadequate space for closure. Verify the entire task, including cleaning the port region and managing a container that cannot be opened or closed normally.
5. Liners, bags and disposable interfaces
Continuous liners and other bag-based systems can enclose discharged material and support contained waste removal. Their effectiveness depends on film selection, attachment, closure, cutting and handling. Evaluate puncture resistance, compatibility, static behaviour, package weight and the method used to confirm a secure closure.
Study the operations around sealing and separation in detail. Powder may collect in folds or near the closure zone. A liner that is adequate during filling may become vulnerable when lifted, transported or placed in a waste container. Define support arrangements and avoid loading the film or seal beyond its intended use.
Disposable components create a waste stream that remains part of the containment strategy. Establish how used liners, ties and tools are enclosed and removed. Do not present disposability as eliminating cleaning: reusable attachment points, external equipment surfaces and accidental contamination still need assessment and appropriate cleaning methods.
6. Closed transfer: control solids and displaced air
Gravity, vacuum and other closed transfer arrangements can reduce manual handling, but each introduces different operating conditions. Evaluate material degradation, retention, line blockage, cleaning access and the consequences of pressure changes. Select the transport method from process requirements and containment evidence rather than assuming that automation removes exposure risk.
The gas path matters as much as the powder path. Receiving vessels may require controlled venting; vacuum systems may collect powder in filters or separators. Review pressure relationships, filtration, discharge, isolation and safe servicing. A closed material line connected to an inadequately controlled vent is not a complete containment system.
Define the response to blockage and incomplete emptying before operation. Techniques such as disconnecting a hose, opening a receiver or applying compressed air can create new hazards if improvised. Provide a reviewed recovery method, suitable access provisions and an explicit decision point for stopping work when normal recovery is unsuccessful.
7. Compare technologies by failure mechanism
Use the following table to structure a design review. It lists questions to resolve, not performance classes or preferred suppliers.
| Interface | Potential weak point | Engineering question | Relevant evidence |
|---|---|---|---|
| Split butterfly valve | Residue at seals or mating faces | What is exposed during undocking? | Complete transfer-cycle performance and inspection |
| Rapid transfer port | Docking, door sequence and exposed surfaces | Can the wrong sequence or container defeat the boundary? | Interface verification and representative task testing |
| Continuous liner | Closure, cutting, puncture and package handling | How is the contaminated segment separated and supported? | Simulated handling and task-based performance |
| Closed hose or pipe | Couplings, blockage and retained powder | How are connections and recovery managed safely? | Integrity, transfer and recovery verification |
| Receiver vent | Filter, seal or discharge path | Where does displaced or transport gas leave? | Air-path verification and filter-system assessment |
Treat an unresolved critical interface as a design gap. Adding a room pressure cascade may provide secondary protection but does not remove the need to control release at the connection. Equally, a strong transfer interface does not eliminate the need to assess room operations and movement of contaminated packages.
8. Integrate cleaning and maintenance
Specify which parts require cleaning between batches or products and which are dedicated or disposable. Identify residues in valve pockets, flexible hoses, port seals and receiver vents. Assess the feasibility of inspection, sampling and cleaning verification without exposing workers unnecessarily.
Separate product-quality cleaning acceptance from safe access for servicing. A residue limit derived for carryover into another medicinal product does not automatically define a safe condition for a technician opening a component. Occupational hygiene and toxicology should support the access decision for the specific task and exposure routes.
Maintenance instructions should cover isolation, retained material, component removal, temporary closure and return to service. Consider whether spare valves or transfer containers need controlled storage and identification. Replacement components must be compatible with the qualified arrangement; apparently minor differences in seals or geometry can affect performance.
9. Verify performance under representative conditions
[GEP] Start with design and interface checks: dimensions, materials, assembly, signals, interlocks and pressure compatibility. Follow with functional testing of the full operating sequence. Include relevant interruptions and recovery actions selected through risk assessment, with suitable precautions for the test material and equipment.
[GUIDANCE] A surrogate containment performance study, informed by current SMEPAC guidance where applicable, can evaluate emissions during defined tasks. Agree the surrogate rationale, quantities, sampling strategy, analytical capability, acceptance basis and treatment of variability before execution. No universal number of runs or sampling positions applies to every transfer arrangement.
[OCCUPATIONAL HEALTH REQUIREMENT / GUIDANCE] Actual workplace exposure assessment addresses the intended compounds and real operating conditions. Personal breathing-zone sampling and fixed-area sampling answer different questions. Area results can help locate emissions, but they should not be relabelled as measurements of personal exposure.
10. Example: a contained charging interface
An existing process vessel is to receive potent powder from a lined drum. The team initially considers only the docking valve. A process walk-through reveals additional decisions: removal of the drum lid, handling of the inner liner, movement to the docking position, vessel venting and disposal of the emptied package.
The revised design defines each step and assigns a control. Operators test positioning and liner handling using representative packages. The supplier confirms the assembled interface and pressure conditions. A planned study then evaluates the complete cycle, including separation and package removal, rather than only the period when powder flows through the valve.
The team also defines a method for incomplete emptying and a safe state after loss of extraction. Acceptance remains conditional on the approved criteria and evidence. The example shows why a component-level purchase specification can miss the actual exposure scenario even when the component itself is technically suitable.
11. Recognise weak specifications
A specification is incomplete when it calls a transfer closed without describing the opening and closing sequence. Other warning signs include an unassigned receiver vent, a performance report that excludes undocking, and an operating instruction that relies on brushing loose powder from an exposed connection. Ask the supplier to demonstrate the difficult step rather than adding a general promise to the quotation.
Changes to packaging deserve the same scrutiny as changes to hardware. A new liner material, drum size or closure method can alter docking, static behaviour and handling. Define who approves such changes and which evidence must be reviewed before introduction. Purchasing should retain the approved component specification so that substitutions do not enter the process as routine consumables.
12. Transfer design checklist
- Define the material, quantity, packaging and transfer frequency within the intended operating envelope.
- Map powder-contact and potentially contaminated surfaces through the entire sequence.
- Confirm supplier responsibilities for both mechanical and control interfaces.
- Verify alignment, connection status and prevention of unsafe operating sequences.
- Include the receiver vent and transport-gas path in the containment boundary.
- Evaluate residual powder, incomplete emptying, blockage and loss of utilities.
- Provide workable cleaning, waste and contaminated-component replacement methods.
- Specify relevant evidence for connection, transfer, disconnection and recovery.
- Keep surrogate testing and actual exposure assessment clearly distinguished.
- Record limitations and changes that require reassessment.
[REGULATORY REQUIREMENT] Applicable GMP requirements for equipment suitability and prevention of cross-contamination inform the design and cleaning strategy. [QRM] The extent of qualification and verification should follow documented risk and intended use. [GUIDEGXP RECOMMENDATION] Retain a single interface register linking each boundary transition to its control, acceptance criterion, owner and evidence. This makes transfer risks visible during design changes and prevents a critical connection from becoming an unassigned gap between suppliers.
Sources, scope and engineering recommendations
Source status checked on 25 September 2026. Apply each document within its jurisdiction and scope. GEP and GuideGxP recommendations are engineering advice, supported by risk assessment; examples are illustrative. For copyrighted standards and ISPE guides, the public scope and edition were verified; detailed licensed protocols are not reproduced.
- [REGULATORY REQUIREMENT] European Commission — EudraLex Volume 4, Chapters 3 and 5.
- [REGULATORY REQUIREMENT] European Commission — EU GMP Annex 15: Qualification and Validation.
- [OCCUPATIONAL HEALTH REQUIREMENT / GUIDANCE] HSE HSG258 — Controlling Airborne Contaminants at Work.
- [GUIDANCE] ISPE — SMEPAC, third edition: Airborne Particle Emissions from Containment Systems.
- [GUIDANCE] WHO TRS 957, Annex 3 — GMP for Products Containing Hazardous Substances.
