A dry-heat oven does not become a pharmaceutical sterilizer simply because it has a precise controller and a high temperature. The result depends on how the energy reaches each item, how air circulates within the loaded configuration, and how the material remains protected during cooling and unloading. A design that neglects these aspects can produce a seemingly uniform chamber and an inadequately characterized load.
This article addresses batch ovens for dry-heat sterilization, noting interfaces with depyrogenation where relevant. Continuous tunnels require specific analysis of transport and exposure. Operational guidance is [GEP] and [GUIDEGXP RECOMMENDATION]; regulatory and standard references are distinct from choices that must be justified for the individual process.
1. Separating sterilization and depyrogenation
Dry heat can be used for different objectives. Sterilization concerns microbial inactivation; thermal depyrogenation requires an appropriate demonstration of the effect on endotoxins in the relevant context. A thermal profile developed for one purpose must not be transferred to the other without scientific evaluation.
The URS must state which materials and surfaces are to be treated, the required result, and the expected evidence. Components, containers, substances, and equipment may have different constraints. The oven's ability to reach a setpoint demonstrates neither lethality at the critical point nor endotoxin reduction on the item.
Also, distinguish between preliminary cleaning and thermal treatment. Residues, initial contamination, and hold times can influence the strategy. Heat must not become a means to justify uncontrolled initial conditions. When an assessment of washing or cleaning procedures is needed, coordinate with Cleaning, CIP & SIP Systems.
2. Understanding material compatibility
Gather information on glass, metals, coatings, elastomers, polymers, and assemblies. Evaluate deformation, functional alteration, particle release, and behavior after repeated exposures. The material's nominal tolerance does not necessarily describe the behavior of an assembled part or closure in its actual configuration.
For critical containers and components, verify dimensions and performance after treatment. A minor variation can affect subsequent coupling, filling, or sealing. For thermally sensitive materials or substances, define upper limits consistent with quality: the strategy must control both under-treatment and excessive stress.
Packaging, wraps, and supports must be compatible with the process. Protection useful during handling may shield the flow or increase the time required for heating. Their use must be part of the studied configuration, without additions not evaluated at the time of production.
3. Designing the airflow path

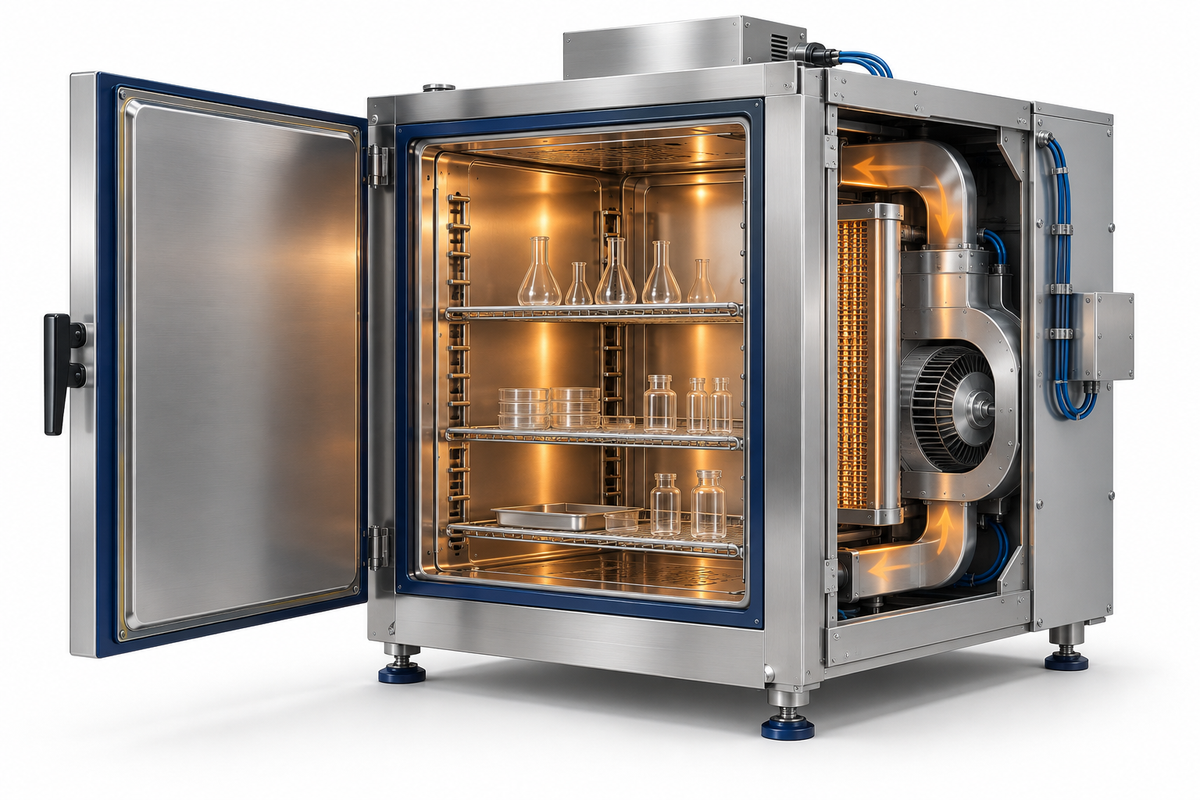

Analyze supply, return, recirculation, distribution, and zones potentially shielded by the load. The plenum geometry, heater position, and fan characteristics influence the thermal field. Request a description of the operation and the methods by which the supplier will demonstrate its suitability in the planned configuration.
Computational fluid dynamics (CFD) can guide the design, but it does not replace testing on the constructed and loaded system. Model assumptions must represent relevant obstacles, properties, and boundary conditions. Use the results to formulate verifiable hypotheses and select investigation points, keeping numerical prediction and experimental evidence distinct.
Evaluate what happens if a fan slows or stops, if a filter changes flow resistance, or if a damper does not reach the intended position. Heater control alone may not identify altered thermal distribution. Define measures and interlocks consistent with the consequences of failure.
4. Chamber, insulation, and maintenance
Construction must support cleanability, repeatability, and management of thermal expansion. Evaluate joints, gaskets, fasteners, and points that can produce particulates during repeated cycles. Solutions must be suitable for the actual temperatures, service life, and planned maintenance methods.
Insulation affects performance, consumption, cooling times, and the safety of external surfaces. Specify installation conditions and required clearances. An oven placed in an environment with insufficient ventilation or limited access may perform differently than the conditions considered in the quote.
Provide accessibility to heaters, fans, filters, and instruments without unnecessarily invasive interventions. Request procedures that allow position and configuration to be restored after maintenance. The goal is to know which functions may be affected and which verifications allow for a reasoned decision to return to service.
5. Filtration, pressure, and protection
Material protection during heating, holding, and cooling must be defined together with the process. Consider inlet air quality, filtration, pressure differentials, and possible contamination paths. Do not limit the analysis to the maximum temperature phase: the load must remain suitable even after treatment.
[GUIDANCE GMP UE] Annex 1, point 8.70, covers dry-heat ovens and provides for HEPA-filtered inlet air, as well as pressure conditions that protect against less clean areas, with the specific exception related to packaging integrity. Application must be evaluated on the actual configuration and related contamination control.
Filter qualification and integrity management must be consistent with temperature and installation. A nominally adequate filter does not demonstrate the absence of bypass or the seal of the installed assembly. Agree on access, methods, responsibilities, and management of tests after replacement or relevant interventions.
6. Defining racks and load configurations
Number of shelves, mass of supports, distance between items, and orientation influence the process. The load can deflect flow, create shielding, or modify thermal transfer. Establish authorized configurations with identification of supports and instructions sufficient to reproduce them in routine.
The maximum load is not automatically the worst case for every attribute. It may be more demanding for heating, while a reduced configuration may expose some items to higher conditions or alter distribution. Evaluate minimum, maximum, and representative configurations through logic based on the relevant mechanism.
Avoid grouping materials just because they can be placed on the same rack. A family must be supported by comparable properties and behavior. Document which differences are covered by evidence and which require further study, including variations in container or packaging.
7. Characterizing thermal distribution and penetration
Distribution describes the thermal field in defined positions; penetration describes the article's response. Both are needed when necessary to understand the process. The material's slowest point may not coincide with the air's coldest position and may change as the load varies.
Design probe placement based on geometry, flow, mass, and critical surfaces. Consider effects of fastening, contact, shielding, and dynamic response. A probe suspended in the air near an object does not automatically represent the temperature of its surface or relevant internal point.
Maintain identification, calibration, layout schema, and raw data. Define criteria for invalid measurements, shifts, and discrepancies. The number of probes, acquisition interval, and repetition of tests must be justified; they do not derive from a standard number applicable to every oven volume.
8. Controlling phases and acceptance conditions
The cycle must distinguish between heating, reaching relevant conditions, exposure, cooling, and availability for unloading. Define which event initiates the measurement of the treatment period and how the logic represents the load. Acceptance cannot depend only on the program reaching the final phase.
Establish lower and upper limits, tolerances, alarms, and responses to anomalies. Excessive dwell time may be relevant to material and quality; a loss of circulation may make a value measured at a favorable point uninterpretable. The system must distinguish between an operational warning, a technical fault, and process failure according to approved criteria.
For electronic data, associate the recipe, version, load, instruments, trends, and events with the unique cycle. Verify behavior after power or communication interruption. Restart criteria must preserve the reconstructibility of the actual exposure and prevent an incomplete record from being automatically treated as compliant.
9. Design review matrix
| Choice | Risk to consider | Verification to plan |
|---|---|---|
| Airflow path | Shielded zones or altered circulation | Characterization with relevant loads |
| Racks and spacing | Variation in thermal transfer | Distribution and penetration |
| Filters and seal | Bypass and re-contamination | Installation integrity and maintenance management |
| Temperature control | Non-representative favorable measurement | Correlation with critical positions |
| Cooling | Material stress or contamination | Quality, protection, and unloading conditions |
| Faults and restart | Non-reconstructible exposure | Functional challenge and record review |
The matrix must feed back into the URS and qualification strategy. For each risk, define the owner, criterion, and document that will contain the evidence. Avoid acceptances based on expressions such as "adequate uniformity" without scope, conditions, and evaluation method.
10. Example: adding a shelf changes the process
To increase capacity, a site adds a shelf to an existing rack. The chamber volume and recipe do not change, but the new support modifies obstacles, mass, and arrangement of items. Treating the intervention as a simple mechanical modification may overlook the effect on distribution and penetration.
The assessment identifies which assumptions of the qualified configuration are altered. It compares geometry, flow, and load and defines targeted tests, including relevant heating and cooling conditions. If the new shelf introduces a slower point or increases the exposure of other positions, the configuration and operating window must be reviewed.
The final decision updates drawings, instructions, rack identification, and usage limits. It is not enough to keep the test report: those loading the oven must recognize the authorized configuration. An effective change control links the technical conclusion to daily execution.
11. Specifying non-routine states
Cold start, recovery after prolonged shutdown, and use following maintenance may require different verifications than the routine cycle. Define which conditions must be re-established before introducing production material. Setpoint stability may be necessary, but it does not alone demonstrate that filters, pressure, circulation, and recording are in the intended state.
A loss of power during treatment must produce an identifiable state and sufficient data to evaluate what occurred. Do not assume that program continuation equals process continuity. It is necessary to know the duration of the interruption, observed temperatures, any loss of circulation, and the ability to protect the load. The procedure must indicate who can decide the fate of the material and what information is indispensable.
Also evaluate an unexpected door opening or a problem during unloading. The material may have received the required exposure and subsequently lost the necessary protection. Distinguishing these conditions prevents focusing every investigation solely on heating. The decision must consider the intended use, receiving environment, packaging, and possibility of authorized reconditioning.
For supply contracts, ask for a responsibility matrix for tests, instruments, challenge materials, and analysis. Specify which activities are performed at the manufacturer's site and which require the installed site. FAT can verify logic, functions, and documentation, but does not automatically demonstrate the flows and conditions of the final production configuration. Exclusions must be clear before ordering.
Finally, establish how data from the first campaigns will be reviewed to confirm routine management. Progressively longer heating times, cooling changes, or frequent flow deviations may justify an investigation before an evident failure. Trending must use comparable configurations and distinguish planned modifications from unexpected variations.
12. Standards, evidence, and final decision
[TECHNICAL STANDARD] ISO 20857:2010, confirmed in 2022, concerns the development, validation, and routine control of dry-heat sterilization of medical devices and includes aspects of depyrogenation. Its scope must be evaluated when used in a pharmaceutical project. ISO 11138-4:2017 concerns biological indicators for dry-heat processes within the field declared by the standard; it does not authorize the indiscriminate use of an indicator in any high-temperature process.
For pharmaceutical destinations, GMP and compendial requirements applicable to the product and market are also needed. Verify the texts actually in force and the product authorization, without transforming catalog metadata into a full verification of the standard's content. Protected documents must be consulted in the versions authorized by the project.
The main red flags are a single empty chamber map, uncontrolled loads, absence of upper limits, filtration treated only nominally, and no shutdown management. A solid design links equipment, load, measurements, and subsequent protection. This link allows the process to be developed and validated without attributing a meaning to the chamber temperature that it does not possess.
References and pathways
Sources verified on September 23, 2026: EU GMP Annex 1; ISO 20857:2010; ISO 11138-4:2017. The edition and scope of standards are verified on official catalogs.
