Pharmaceutical Steam Sterilizer Design: Chamber, Air Removal, Steam and Load Interfaces

Connect chamber, doors, drainage, vacuum and utilities to the performance of the actual pharmaceutical load.

A Aldo Xhango 8 min read
✓ Official sources and references ✓ Practical approach ✓ For pharmaceutical professionals
GUIDEGXP · PRACTICAL GMP INSIGHTS

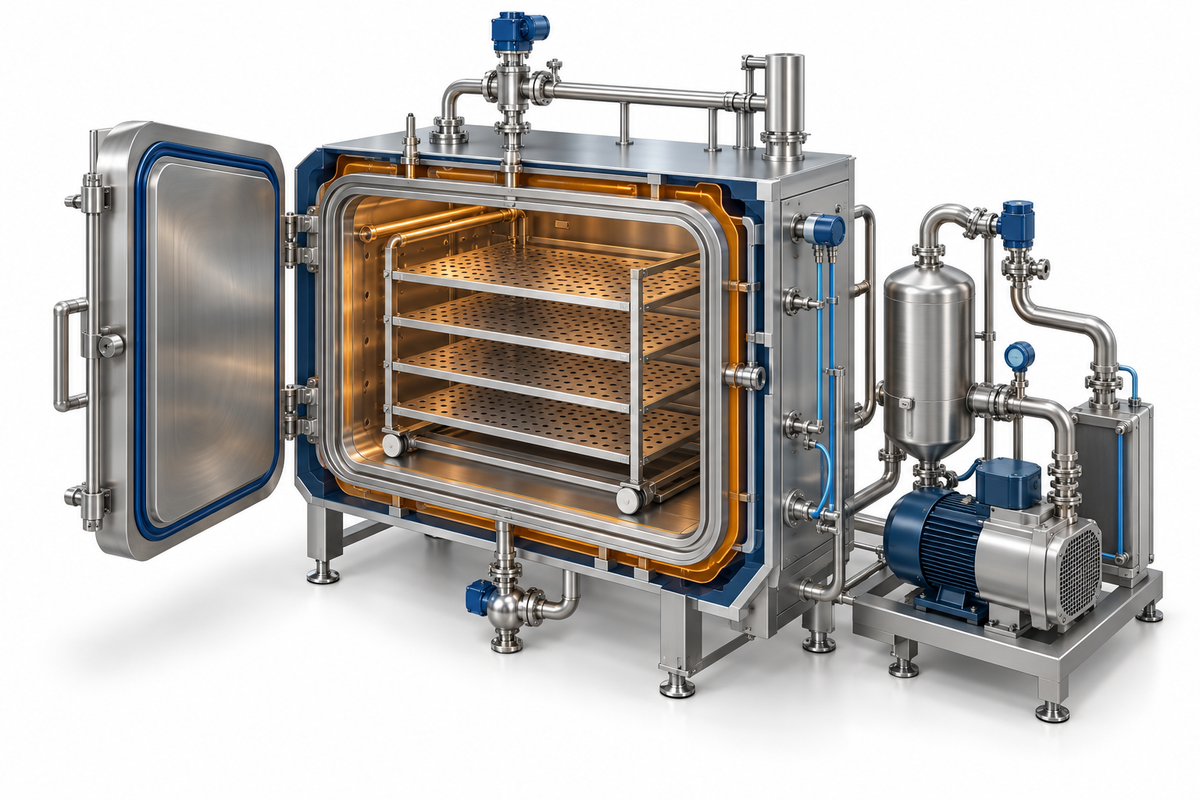

Technical cutaway of a steam sterilizer showing the chamber and process connections

An autoclave may reach the setpoint in the chamber while leaving part of the load in conditions other than those required for the process. The cause can be an air pocket, a non-draining assembly, packaging that is too compact, or a sequence that initiates exposure before the load has reached the intended conditions. The design of the steam sterilizer must make the reproducible treatment of actual items possible and allow for the collection of evidence that demonstrates it.

This article concerns pharmaceutical steam sterilizers and their related loading interfaces. The generation and distribution of clean steam belong to the Critical Utilities area; here, steam is considered as a process input. The design choices described are [GEP] and [GUIDEGXP RECOMMENDATION], to be verified against intended use, applicable regulations, and site studies.

1. Starting from load families

Define the items to be treated before choosing chamber dimensions and accessories. Metal parts, porous materials, garments, and liquids have different requirements. A hollow part requires an evaluation of the air and steam path; a liquid mass requires characterization of the internal thermal response. The nominal chamber volume does not describe any of these performances.

For each family, indicate quantity, mass, geometry, packaging, orientation, and supports. Consider minimum and maximum loads and permitted combinations. If mixed loads are planned, verify that heating, drying, and cooling are compatible for all elements. The presence of a selectable recipe on the HMI does not demonstrate that a configuration is validated.

Also record initial conditions: clean and dry components, wait times, initial temperature, and handling methods. These elements must be realistic for production routines. A configuration that can be prepared only by a specialist during testing does not constitute a robust solution for ordinary operation.

2. Chamber, jacket, and condensate paths

The chamber must house the payload with space adequate for process functions. Evaluate geometry, accessibility, finish, fittings, measurement points, and the absence of areas that favor stagnation. Mechanical design must meet applicable safety and pressure requirements; such compliance is distinct from the microbiological suitability of the process.

The jacket contributes to the thermal management of the chamber and can influence conditioning and drying. Request a description of its regulation and its interactions with the cycle. A hot chamber does not guarantee that air has been removed from the load; the jacket must not be treated as an automatic compensation for inadequate medium distribution.

Study the condensate path from formation to discharge. Load arrangement, component slope, fittings, and drainage devices must allow for the intended operation. Stagnation can alter thermal transfer and drying. Make points requiring inspection and maintenance accessible, documenting how an intervention might affect the qualified state.

3. Doors and pass-through configuration

A pass-through configuration connects different rooms and flows. Clearly define the loading side, unloading side, state of the materials, and conditions authorizing opening. Interlocks must prevent sequences incompatible with safety and contamination control, also considering failures, maintenance, power loss, and interrupted cycles.

The door seal and its actuation system are part of the overall performance. Establish checks, maintenance, and criteria for evaluating replacements. A seal of apparently equivalent dimensions may behave differently under temperature, pressure, and vacuum. Change control must evaluate the function, not just the correspondence of the spare part code.

The sterile boundary does not automatically coincide with the unloading door. It depends on treatment, packaging, cooling, the receiving environment, and subsequent transfer. Define what happens to the material when the cycle is not accepted and how to prevent it from being confused with authorized material. Segregation of states requires operational tools in addition to machine logic.

4. Air removal and vacuum system

The presence of air can hinder effective steam contact with surfaces or locally alter thermal conditions. A prevacuum sequence is a technical solution, but its execution is not equivalent to the demonstration of air removal. The load configuration and system behavior must be evaluated with relevant testing.

Specify the operating range required for the vacuum system, leakage management, utility conditions, and response to failures. Avoid setting the number of pulses or vacuum levels without linking them to cycle development and load. Evaluate performance during simultaneous demands and realistic site conditions, including variations that could lengthen conditioning.

When planned, air detection devices and test cycles must have defined purpose, location, and criteria. Establish how the outcome affects machine availability and what actions follow a non-conforming result. A check that produces an ignorable alarm without a tracked decision offers limited protection.

5. Steam as a process input

Define available pressure, required flow rate, and steam conditions relevant to the application. Utility verification must be representative of the point of use and operating conditions. A favorable sample taken far from the autoclave does not solve problems introduced by the terminal section, distribution, or behavior during peak demand.

Evaluate non-condensable gases, moisture, and superheat when relevant to the process and verification strategy. It is not enough to generically request "clean steam": chemical purity, physical characteristics of the medium, and cycle performance address different questions. Agree on criteria, methods, responsibilities, and behavior when the input is outside defined conditions.

The pressure-temperature correlation must be interpreted correctly. For saturated steam, the relationship is a useful tool, but it does not by itself identify every air pocket or the behavior of every part of the load. In processes with steam-air mixtures, the total pressure includes different components and cannot be read as if derived exclusively from steam.

6. Carts, racks, and item orientation

The cart is a process component. Thermal mass, contact surfaces, shelf arrangement, and dimensions can alter heating and drainage. Require controlled identification and evaluate differences between apparently interchangeable carts. A modification to the support can change the validated configuration even if the items remain the same.

For hollow or dismountable parts, define orientation, degree of disassembly, and protection. Consider how the operator recognizes an incorrect arrangement and what means reduce the probability of error: dedicated supports, visual references, approved photographs, and position identification. Ambiguous instructions produce variations that are difficult to detect by cycle monitoring alone.

Free space must be evaluated functionally. Filling every available volume may increase nominal productivity but hinder medium access. Tests must demonstrate the behavior of permitted configurations and justified critical conditions, without turning a distance observed in a study into a universal rule for every autoclave.

7. Instrumentation and access points

Define the measurement chain, range, accuracy, dynamic response, and calibration management. A probe may provide stable readings that are not representative of the critical point of the load. The position of permanent sensors must be justified through characterization and validation, linking what is measured in routine to what matters for acceptance.

Provide access for independent probes, repeatable fixings, and passages that do not introduce significant leakage or process alterations. The quantity and distribution of probes derive from geometry, risk, available knowledge, and the goal of the study. The convenience of connecting the datalogger does not constitute a sufficient criterion.

[GUIDANCE GMP UE] Annex 1, points 8.50–8.51, requires a recording and protection strategy capable of detecting non-conforming cycles and a justification for control and recording points. Translate these principles into tests of the complete chain, including plausible failures and common dependencies, instead of simply counting how many sensors are installed.

8. Drying and cooling

Drying is not synonymous with lethality. A load may have received an adequate thermal treatment and still be unacceptable due to moisture, packaging damage, or risk of recontamination. Specify how the suitability of the material for unloading is defined and verified, without using a generic drying criterion for all load types.

For liquids, cooling must be developed considering internal pressure, deformation, closure integrity, and product quality. Avoid automatic transfers of porous load logic. The protection required for the cooling medium or gas coming into contact with sterilized material depends on the configuration and must be documented.

Establish conditions for end-of-cycle, waiting, and unloading. Reaching a temperature that allows for handling is not the sole criterion: the state of the load and traceability must be preserved. A delay in unloading must be managed with a procedure consistent with approved times and conditions.

Maintenance must preserve the relationship between physical configuration and data. After probe replacement, also check channel identification, position, scale, and association with the report. After work on the vacuum, verify the affected functions with justified tests. Returning to service does not consist simply of the absence of alarms: it requires a documented decision on the necessary evidence and authorized conditions.

Plan for critical spare parts and procurement times as early as the design phase. Ask the supplier which components may become obsolete and what data will accompany a replacement. Orderly revision management prevents drawings, software, and installed configuration from diverging progressively during the years of operation.

9. Matrix of interfaces to be verified

Interface Design question Useful evidence
Chamber and load Does the medium reach critical surfaces? Approved configurations and load studies
Vacuum and sealing Are required conditions reached and maintained? Functional tests, leaks, and anomaly management
Steam and point of use Does the input remain suitable during the cycle? Representative checks and utility trends
Door and environment What states authorize transfer? Interlock challenges and segregation
Instruments and reports Can the decision be reconstructed? Measurements, events, versions, and associated records
Maintenance and process What functions can be altered? Change analysis and return-to-service tests

10. Example of a hidden design problem

During loaded tests, an assembled metal part shows slower heating while chamber probes are regular. Immediately increasing the exposure time may mask the problem. It is necessary to verify geometry, trapped air, orientation, drainage, and the actual position of the measurement, while preserving the original test data.

If behavior changes when the part is disassembled or oriented differently, the solution may concern load preparation or mechanical support. The chosen configuration must be evaluated against risks of handling and subsequent recontamination. The decision requires a comparison between treatment efficacy and article handling, not just the search for the most uniform trend.

The design lesson is to plan these studies before freezing racks and accessories. Development results must return to drawings, loading instructions, and acceptance criteria. A standard autoclave may be suitable, but its pharmaceutical use depends on the actually demonstrated configuration.

11. Review before purchase

Verify the availability of updated drawings, instrument lists, functional logic, spare parts, and access to records. Ask how alarms, aborts, restarts, and recipe changes are handled. Answers must clarify boundaries between the supplier, integrator, and site, including support availability during development and validation.

[TECHNICAL STANDARD] ISO 17665:2024 and EN 285:2015+A1:2021 have specific scopes related to medical devices and, for EN 285, to large steam sterilizers. They can inform relevant requirements, but their citation does not replace the demonstration of the pharmaceutical process. Cite only applicable parts and distinguish them from GMP and safety requirements.

The final decision should demonstrate that load, machine, utilities, measurements, and subsequent protection form a coherent whole. Major red flags are performance referred only to the empty chamber, undefined carts, interlocks described without tests, and unavailability of original data. Resolving them in the design phase reduces late modifications and studies that are difficult to interpret.

References and related paths

Source verification: September 23, 2026. EU GMP Annex 1, sterilization section; ISO 17665:2024; BSI, EN 285:2015+A1:2021. Standards catalogs are used for edition and scope, without reproducing protected procedures.

Return to the Sterilization & Depyrogenation Systems hub and consult URS requirements. Interfaces with aseptic transfer and data are developed in the Aseptic Fill-Finish and Automation & Digital areas.
