Developing Moist Heat Sterilization Cycles: Air Removal, Heat Penetration, Lethality and Load Strategy

Turn actual load behaviour into a controlled cycle, with justified operating limits and a clear route to validation.

A Aldo Xhango 8 min read
✓ Official sources and references ✓ Practical approach ✓ For pharmaceutical professionals
GUIDEGXP · PRACTICAL GMP INSIGHTS

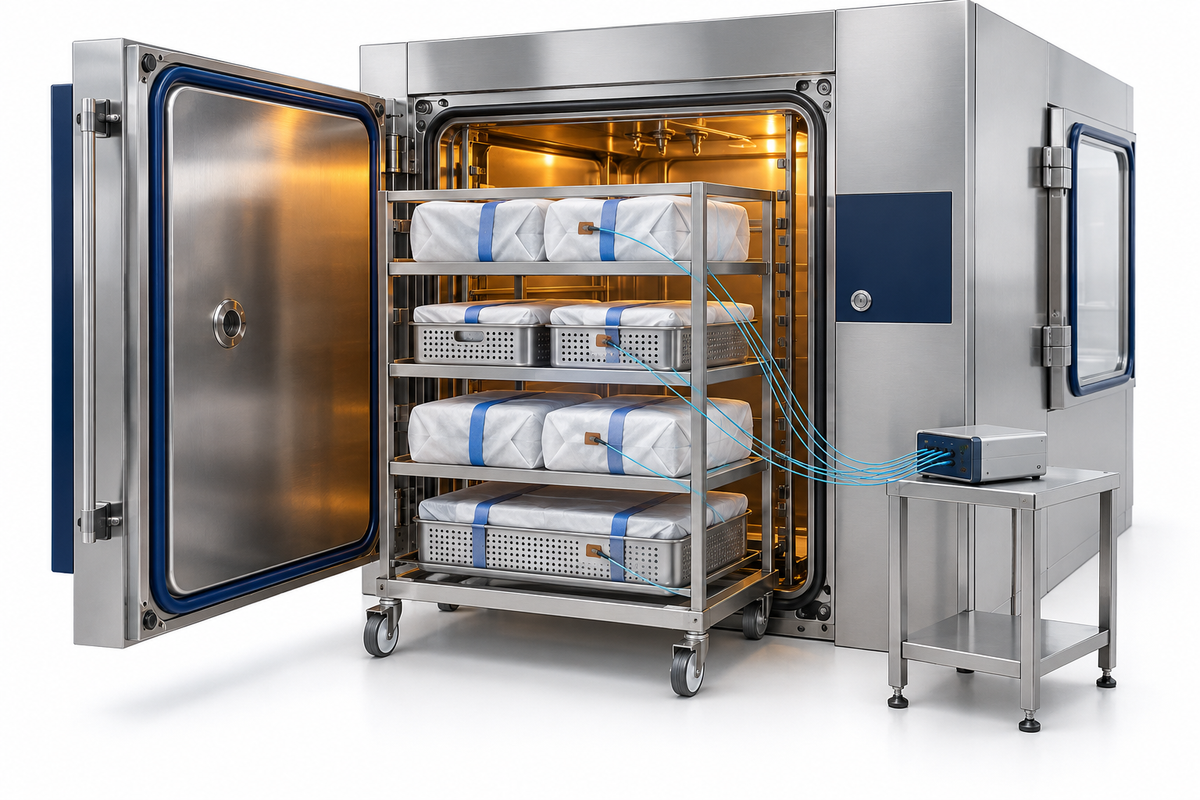

Wrapped autoclave load fitted with temperature probes for cycle development

When a penetration test shows a load point heating slowly, extending the exposure may seem like the simplest answer. First, it is necessary to understand whether the delay stems from thermal inertia, residual air, medium contact, packaging, or the measurement position. Developing a moist heat cycle consists of building this understanding and transforming it into a reproducible sequence that is compatible with the material and verifiable in routine.

The path changes between parts and porous materials, liquids in closed containers, and other configurations. This article presents development decisions [GUIDEGXP RECOMMENDATION], distinguishing them from references to applicable sources. It does not propose a universal recipe: temperature, duration, pulses, limits, and microbiological criteria must be derived from the process and evidence.

1. Defining the object of development

Record the intended use, load family, configuration, materials, packaging, and initial conditions. Identify surfaces or volumes that must receive the treatment and quality constraints: deformation, stability, container integrity, or protective barrier. Declare what is already known and which hypotheses need to be tested.

A preliminary matrix should distinguish load variables, machine parameters, and utility conditions. Mass, fill volume, and arrangement are not equivalent to setpoints and phase times, but they interact with them. Documenting these relationships helps to choose informative tests and avoid trial sequences that modify too many variables simultaneously.

Establish the boundaries of the future application from the outset. If a cycle is developed for a precise configuration, do not automatically extend it to partial or mixed loads. Extensions may be justified, but they require data and an explanation of why the studied configuration represents the proposed one.

2. Verifying machine and measurement readiness

Before testing, ascertain the equipment configuration, utility availability, instrument operation, and maintenance status. An unstable sequence caused by a vacuum defect or inadequate drainage should not be compensated for by optimizing parameters. The engineering problem must be identified and resolved.

Prepare independent instruments suitable for the range, accuracy, dynamic response, and environment. Document calibration, channel identification, synchronization, and placement. Post-test checks help assess whether any drift compromised the interpretation. The plan must provide for how to handle shifted probes, missing data, or unreliable channels.

Define a collection system that preserves the original data and parameter changes. Development produces information to be reviewed, even when a test does not reach the target. Eliminating unfavorable attempts prevents understanding the limits of the operating window and can make the assessment of robustness deceptive.

3. Studying conditioning and air removal

For loads requiring direct contact with steam, conditioning must favor air removal from the relevant zones. Closed geometries, dense packaging, and unfavorable orientations may require load modifications before machine adjustments. The pulse sequence must be supported by tests on the actual system.

Examine curve shapes, times to reach conditions, and the behavior of critical positions. A localized delay may indicate a different problem than slow heating of the entire chamber. Correlate temperature, pressure, phases, and any air detector signals without attributing diagnostic capabilities to a single parameter that it does not possess.

The prevacuum is not an autonomous air removal test. Even a chamber with a good seal can contain a load that hinders medium penetration. Conversely, a well-prepared load does not compensate for an engineering defect. The two dimensions must be characterized and controlled separately.

4. Distinguishing distribution and penetration

Distribution tests describe the thermal environment in defined positions of the chamber or the loaded system. Penetration tests describe the response at the points of the item or product that affect the process. A uniform map of an empty chamber does not prove that a liquid, an assembled part, or a package receives the required treatment.

The position of the probes must derive from knowledge of the load and test objectives. In liquids, the thermally unfavorable point also depends on geometry, product properties, and convection mechanisms. In parts, choose positions consistent with critical surfaces, cavities, and contacts. Avoid introducing artificial steam paths through instrumentation fixtures.

Compare positions between tests to assess variability and reproducibility. If the slowest point changes, investigate the meaning of the change and the extent of the variability. It is not necessary to force every study to identify a single permanent cold spot when the real behavior requires a more articulated representation.

5. Defining the start and control of exposure

Establish which conditions must be met before starting the sterilization period. Reaching the setpoint by the chamber probe does not necessarily coincide with the entire load reaching the conditions. The relationship between control, recording, and load must be demonstrated during development and confirmed during validation.

Evaluate equilibration, temperature range, time, and, when relevant, lethality. Limits must include justified tolerances and consequences of excursions. A longer duration is not always harmless: it can affect the product, packaging, or repeatability. Also specify upper limits when necessary for quality and correct cycle interpretation.

[GUIDANCE GMP EU] Annex 1 addresses the characterization of porous cycles and those for fluids separately and requires that critical parameters be defined and verified. The operational consequence is to build criteria consistent with the load family, avoiding automatically transferring the same acceptance logic between different processes.

6. Interpreting lethality and F0

Equivalent thermal lethality is derived from the integration of the temperature-time history according to a declared model. In the general discrete form, each interval contributes with Δt × 10 raised to ((T − Tref)/z). Tref represents the reference temperature, z describes the assumed thermal sensitivity, and Δt uses the declared time unit. The model parameters and its field of application must be explicit.

F0 is a specific convention for expressing equivalent exposure in moist heat, not a synonym for phase duration. Its value must be calculated on data pertinent to the load, with defined rules for acquisition interval, start and end of integration, and handling of invalid data. Two systems can produce different results if these settings are not aligned.

Do not assume F0 = 12 as a universal criterion. The target must be justified with respect to the product, microbiological strategy, initial load, and relevant resistance, in addition to applicable requirements. A satisfactory calculated value does not negate a medium contact defect, a non-representative measurement, or another critical violation of the validated configuration.

[GUIDANCE] The definition reported in the 2019 EMA guideline expresses F0 as equivalent time in minutes at 121 °C, with a theoretical z equal to 10 °C. These references define the calculation in the context of the source; they do not prescribe the recipe for every autoclave. The protocol must report exactly the references configured in the instruments and avoid comparisons between results calculated with different conventions. The same guideline distinguishes sterilization conditions from additional terminal heat treatment after aseptic processing: these are not categories to be confused to fit a result into a more convenient target.

7. Integrating microbiology and indicators

The strategy can use an overkill approach, a bioburden-based approach, or a justified combination, according to the product and process. Assumptions regarding microbial population and resistance must be declared, and it must be demonstrated that the adopted methods are pertinent. Do not automatically attribute the same D and z values to all microorganisms.

Biological indicators must be appropriate to the treatment, identified, stored, and handled under controlled conditions. Evaluate the support, the placement site, and the relationship with the load. A negative result cannot correct an insufficient physical characterization or a test that does not represent the expected critical conditions.

[TECHNICAL STANDARD] ISO 11138-3:2017 concerns biological indicators for moist heat sterilization processes. The compliance of the indicator product is distinct from the suitability of its use in the specific study. The choice and interpretation fall under the project's microbiological strategy, coordinated with Engineering and Quality.

8. Evaluating drying, cooling, and damage

For packaged materials, verify drying and integrity in addition to thermal exposure. A wet pack can have consequences for protection and use even when thermal measurements are acceptable. Investigate mass, arrangement, drainage, medium quality, and final phase conditions; avoid indiscriminately prolonging the vacuum.

For liquids and sensitive containers, develop cooling with attention to gradients, pressure, and deformation. Verify quality and integrity in the actual configuration. The search for a reduction in cycle time must consider the entire stress profile, not just the temperature at the time of unloading.

Describe how the load remains protected after treatment. Filters, gases, fluids, packaging, and the receiving environment can influence the risk of recontamination. From the control strategy point of view, the cycle does not end when the display shows «complete»: consistent management is required until use.

9. Development matrix and decision

Observation Hypothesis to verify Possible decision
Localized load delay Air, contact, geometry, or measurement Modify configuration or sequence based on tests
Cycle-to-cycle variability Initial conditions, utilities, or preparation Define more robust controls and operating window
Wet load Drainage, mass, and drying Intervene on the identified mechanism
Deformed container Pressure and transition speed Revise profile and container protection
F0 mismatch between systems Input, sampling, and integration Align and verify the calculation method

Every change must have a hypothesis and an expected result. If load, pulses, and duration are changed simultaneously, an improvement can be difficult to attribute. When a more articulated experimental design is useful, provide adequate resources and an analysis method that separates main effects and interactions.

10. Example: The minimum load requires its own verification

A cycle for packaged metal parts was developed with a full cart. Production proposes using the same recipe for a few urgent pieces. The lower mass intuitively suggests faster heating, but this observation does not prove the compatibility of the entire sequence. Arrangement, exposed surfaces, condensation, and the relationship between control measurement and materials change.

The team defines a minimum repeatable configuration and compares the behavior with already available knowledge. The tests observe conditioning, exposure, penetration at relevant points, and material conditions after drying. Orientation, packaging, and positions that operators must respect are also documented. The decision is not based solely on the absence of positive biological indicators.

If the configuration falls within the proven window, it can be included according to the approved validation and control path. If it presents different behavior, the cause must be understood, and a dedicated recipe or a different arrangement evaluated. One should not select only favorable data nor accept a permanent change based on a single successful attempt.

The example shows why production capacity and load strategy must be developed together. The possibility of running small batches can have operational value, but it must become an explicit condition of the process. Instructions must also clarify which intermediate configurations are covered, which require evaluation, and how the correct recipe is identified before starting.

11. Transferring the cycle to validation and routine

The development report must explain studied configurations, performed tests, unfavorable results, choices, and limits. Produce a controlled recipe, loading instructions, acceptance criteria, and a justification for representative conditions. The information must allow those preparing the validation protocol to understand what is being confirmed.

Evaluate realistic limit situations without knowingly exceeding equipment safety constraints. Robustness must be demonstrated under justified and controlled conditions. The confirmatory protocol must fix criteria before execution; any subsequent changes require documented evaluation, not a simple revision to adapt to the results.

Finally, establish how to recognize drift in behavior in routine: conditioning times, distribution of anomalies, drying, vacuum performance, and measurement variability. Cycle monitoring and periodic review must return to development when the load or conditions change. The availability of comparable data allows for distinguishing ordinary variation from loss of control.

References and technical links

Sources verified September 23, 2026: EU GMP Annex 1; FDA, Submission Documentation for Sterilization Process Validation, final guidance 1994; ISO 11138-3:2017. The FDA guidance concerns application documentation and is not a universal operational recipe.
