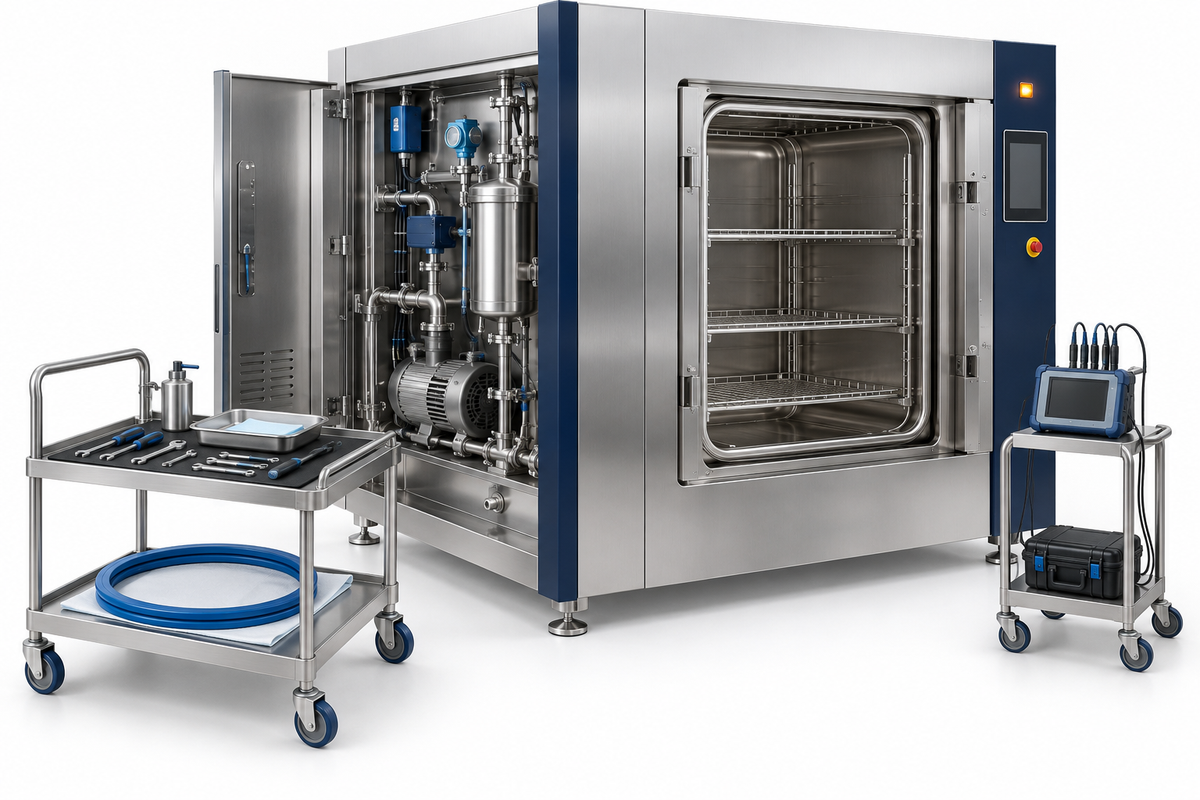

A load comes out wet after a series of apparently identical cycles. The maintenance technician replaces a gasket, the subsequent test is successful, and the machine is returned to availability. However, two open decisions remain: which previous materials might be affected, and what evidence demonstrates that the root cause has been eliminated? Effective troubleshooting must resolve the technical issue and support these decisions, without confusing repair, load acceptance, and the return to a qualified state.
1. Contain the event and preserve the evidence
Upon the occurrence of an anomaly, identify the cycle, material, configuration, and equipment status. Apply the prescribed segregation and suspension rules, preserving data, alarms, and observations. A reset can erase useful information; when necessary for safety, document as much as possible beforehand and record the action performed.
Separate material management from machine management. The restoration of a valve or sensor does not retroactively demonstrate the compliance of the involved cycle. Similarly, a decision regarding the material does not automatically authorize the resumption of production if the technical issue remains unresolved.
[QRM] Define an initial perimeter for the event by considering the last known reliable state, similar cycles, recent changes, and available data. This perimeter can be updated as the investigation proceeds. It must be well-founded, avoiding both arbitrary extension and limitation based solely on the last visible alarm.
2. Describe the symptom without turning it into a cause
“Wet load,” “slow heating,” and “positive BI” are observations, not diagnoses. Record where, when, and with what configuration the phenomenon occurs. Compare the anomalous cycle with comparable cycles, keeping load, recipe, initial conditions, and utilities distinct.
Chronology helps identify changes: maintenance, filter replacement, new packaging, rack modification, software updates, or different steam availability. A temporal coincidence guides the investigation but does not prove causality. Each hypothesis must be verified through relevant data or tests.
Build an ordered list of hypotheses, expected evidence, and discriminating checks. Avoid modifying many variables simultaneously: even when the problem disappears, it becomes difficult to understand which intervention worked. A controlled sequence produces usable information for CAPA and for the future.
3. Investigate air removal, vacuum, and leaks
An air removal problem can stem from seals, vacuum performance, conditioning logic, load, or medium access. Verify gaskets, valves, connections, and phase progression according to procedures. Do not infer the absence of air solely from reaching the chamber pressure.
Distinguish a leak test from an air removal effectiveness test. The two checks provide different information, and both may be necessary. The choice of tests and limits depends on the equipment, cycle, applicable source, and validated configuration.
[REGULATORY REQUIREMENT] Annex 1, §§ 8.60–8.61, typically indicates a weekly leak test when applicable to vacuum conditions and a daily air removal check, or an air detection system, in the described context. These indications do not authorize ignoring an anomaly between two scheduled tests.
4. Investigate wet loads and drying
The presence of moisture can be linked to packaging, arrangement, drainage, steam quality, load mass, or the drying phase. Check where it appears and whether it affects specific configurations. Compare photographs and loading instructions, without assuming that two loads with the same number of pieces are equivalent.
A drying problem is distinct from lethality, but it can compromise the protection and usability of the material. Satisfactory thermal exposure does not automatically make a load acceptable if it does not meet the required integrity or dryness criteria. Evaluation must include subsequent use.
Before extending the phase, verify whether a facility cause or a load change exists. A cycle modification requires impact assessment and adequate testing. Increasing time may mask a defect and introduce additional exposure not evaluated for the material.
5. Investigate abnormal temperatures and cold spots
Distinguish a real process change from a measurement problem. Check channel identity, position, calibration, connections, configuration, and synchronization. An isolated curve should not be discarded simply because it is different from the others: it might represent the very critical condition being sought.
If the phenomenon is physical, consider load, medium access, circulation, drainage, and initial conditions. For ovens and tunnels, also evaluate fans, heating elements, filters, balancing, and speed. Tests must allow for the differentiation of hypotheses, while maintaining a described and reproducible configuration.
A cold spot may shift after a modification. Verification should not be limited to the historically critical point when the intervention has changed the thermal field or flows. The extent of the new mapping must be justified by technical impact and available data.
6. Handle an unfavorable biological result
A BI with growth requires an investigation that includes both the process and microbiological management. Verify the lot, certificate, resistance, storage, position, recovery, incubation, and controls. Also consider identification of the recovered organism when relevant to the investigation. Do not automatically attribute the result to laboratory contamination.
Compare the result with the physical evidence of the cycle and the studied configuration. Compliant physical parameters do not make an unfavorable BI irrelevant, just as a favorable BI does not nullify a critical parameter deviation. Evidence must be interpreted according to the approved strategy.
Repeats must have a documented rationale and not replace the investigation. Retain original results and controls. If a demonstrated analytical error emerges, describe its impact and preventive measures; if the process is inadequate, modify the strategy through the necessary development and validation path.
7. Investigate a failed endotoxin challenge
For depyrogenation, verify preparation, quantity recovered before treatment, extraction method, interferences, and analytical sensitivity. Insufficient initial recovery can render the reduction uninterpretable. Distinguish a demonstrated process failure from a test incapable of correctly measuring performance.
Link each container to its path and thermal profile. Examine belt speed, lateral positions, density, transients, and cooling conditions. A compliant nominal temperature does not prove the container received the required exposure.
Verify the reconciliation of challenge containers and their fate. Test management must prevent contamination or commingling with production material. Decisions regarding restoration must include both thermal performance and the validity of the analytical method, without using an incomplete test as confirmation.
8. Troubleshooting matrix
| Symptom | Initial evidence to examine | Decision to support |
|---|---|---|
| Unstable vacuum | Curves, seals, valves, and pump conditions | Repair and air removal checks |
| Wet load | Arrangement, packaging, drainage, and drying | Material suitability and cause of variation |
| Slow heating | Measurements, load, utilities, and heat transfer | Impact on the validated window |
| Unfavorable BI | Physical data and microbiological management chain | Interpretation and process or method actions |
| Non-compliant endotoxin challenge | Profile, recovery, controls, and path | Validity of the test and tunnel performance |
| Incomplete record | Original data, communications, and audit trail | Ability to demonstrate the cycle performed |
9. Define CAPA and verify effectiveness
Correction resolves the immediate problem; corrective action addresses the root cause to prevent recurrence. If a gasket wears prematurely, mere replacement may not address installation, material, usage conditions, or the maintenance schedule. Link every action to the cause supported by the evidence.
Define an observable effectiveness criterion and a justified period or number of opportunities to verify it. The absence of events in an unused system does not prove effectiveness. Compare conditions similar to those that produced the problem, without exposing production material to an unauthorized test.
Update procedures, training, spare parts, and risk assessment as necessary. The knowledge gained must be integrated into routine management. A CAPA closed administratively but not translated into controls leaves the possibility of recurrence intact.
10. Establish the scope of requalification
Requalification must be proportionate to the change or event, with reference to the affected functions. A sensor replacement may require checks of the measurement chain and the impact on control; an intervention on circulation may require more extensive thermal studies. No single package is suitable for every maintenance activity.
Distinguish equipment requalification from process revalidation. If a condition supporting load performance changes, functional verification of the machine may not suffice. Evaluate involved families, recipes, and tests needed to demonstrate the maintenance of effectiveness.
[REGULATORY REQUIREMENT] For thermal cycles, Annex 1 § 8.39 indicates at least annual revalidation of worst-case configurations, with the frequency of others justified in the CCS. A periodic expiration date does not replace the immediate assessment of changes or anomalies that could compromise the validated state.
11. Example: replacement of an oven fan
A fan is replaced with a model declared to be equivalent. The machine reaches the setpoint, and functional alarms operate correctly. This evidence confirms certain functions but does not prove that air distribution and heat transfer have remained unchanged.
The team compares relevant characteristics, configuration, and operating conditions. The assessment determines flow checks and adequate thermal studies, including potentially influenced loads. If the change alters performance, update the window or design through change control before the return to authorized use.
This illustrative case shows why “same footprint” or “same power” are insufficient to demonstrate functional equivalence. The decision must concern the characteristics that support the validated process. The report links technical comparison, tests, and release limits.
12. Authorize the return to service
Before returning to service, verify completion of interventions, configuration, calibration, and results of the required tests. Confirm that deviations and involved materials are managed and that approval responsibilities are respected. The authorization must indicate any temporary limits and additional checks.
The first cycle after an intervention must not become an informal test lacking criteria. If enhanced checks are planned, define them beforehand and document the results. Production must know what has changed and which signals require a new suspension or evaluation.
Handover to routine includes updated documentation, spare parts, training, and parameter baselines. Record the intervention in the maintenance system and link it to the change control or deviation. This link makes the technical history usable for future investigations.
13. Use trends to prevent recurrence
Follow comparable indicators: time to reach vacuum, heating, frequency of wet loads, alarms, drifts, and verification results. Separate recipes and families when their dynamics differ. A global average can hide a localized deterioration.
Link trends to maintenance and periodic review. Define who reviews them, what conditions require in-depth study, and how decisions are documented. The value of historical data emerges when it produces a motivated action, not when it is simply archived.
Red flags are resets without data preservation, multiple replacements without diagnosis, repetitions until success, and restarts without load evaluation. A robust investigation keeps facts, hypotheses, and conclusions distinct, and makes the transition from root cause to proof of effectiveness verifiable.
14. Interrupted cycles and possible reprocessing
An interrupted cycle must maintain a distinct identity and a link to the material. The possibility of reprocessing cannot be inferred from the fact that the second cycle results in compliance. Evaluate cumulative exposure, stability, integrity, packaging, and storage conditions between treatments. The path must be authorized and supported by applicable evidence.
For sensitive materials, a second exposure may modify functional characteristics even when it improves lethality. For containers or components, consider deformations, closures, and protection after treatment. Document whether the material can be reconditioned and what checks are necessary, maintaining the traceability of the first event.
In tunnels, a stoppage can involve different intervals of containers in the entrance, hot, and exit zones. Management requires a reconstruction of the path and actual conditions. Do not apply a uniform decision to all material without evaluating its exposure and the risk of recontamination. Segregation rules must be defined in procedures and verified in line trials.
When evidence does not allow for reliable reconstruction, the conclusion must acknowledge this limitation. The investigation can still identify actions to improve tracking, recording, or shutdown logic. An information gap is itself a problem to be corrected, because it can prevent informed decisions during future events even if the mechanical cause has been resolved.
References and pathways
Sources verified on September 23, 2026: EU GMP Annex 1 and Annex 15; ICH Q9(R1), 2023; FDA, Pyrogen and Endotoxins Testing, Edition 2, 2026.
