BMS, EMS and Environmental Controls for GMP Cleanrooms: Monitoring, Alarms and Data Integrity

During an inspection the question always arrives in the same shape: show me the pressure differential between the filling room and its background while the batch was processed. Two archives surface. The BMS holds a continuous trend, but the values are already averaged over an interval the integrator chose, its clock is out of step with the other systems, and the set point can be changed with shared credentials. The EMS records the same parameter with a different sampling logic and a genuine audit trail, but from a probe in a location no qualification document justifies. Neither archive answers the question alone; together they contradict each other.

The problem is not technological: both systems work. What is missing is the decision, taken up front and written down, on which system holds the GMP record for each parameter, at what granularity and under which access controls. That is architecture, not configuration: changing it after start-up means redoing validation and procedures. The wider picture sits in the Cleanrooms & HVAC Systems hub.

Why the BMS/EMS boundary is paid for three times

In tendering, a specification asking for "a BMS with environmental monitoring" attracts bids that cannot be compared: whoever prices historian, user roles, audit trail and validation loses to whoever prices supervision alone, and the gap starts when the cleanroom and HVAC URS fails to state which data are GMP records. In qualification, the system holding the record is a GMP computerised system, to be validated under Annex 11. In operation you pay for the silencing habits an unrationalised alarm system creates; over the lifecycle you pay for obsolescence, because replacing the historian without planning data migration loses the readability of the records.

Regulatory framework: what actually constrains monitoring

What is monitored and who holds the record

The table below is not a list of mandatory parameters: it is the format in which the decision is written, row by row, from the CCS and the site risk assessment.

Sensor location and instrument criticality

The measurement point is part of the record: a pressure tap next to a supply diffuser yields data that are true and meaningless. It is decided with the airflow scheme and the pressure cascade, and is frozen in the as-builts.

An instrument is critical if it has direct quality impact or generates a GMP record: it then needs traceable calibration, handling of calibration deviations, change control and a place in the inventory. Calling everything critical is the fastest way to maintain nothing. No official source fixes a calibration frequency: the interval follows criticality, historical drift and manufacturer data [QRM].

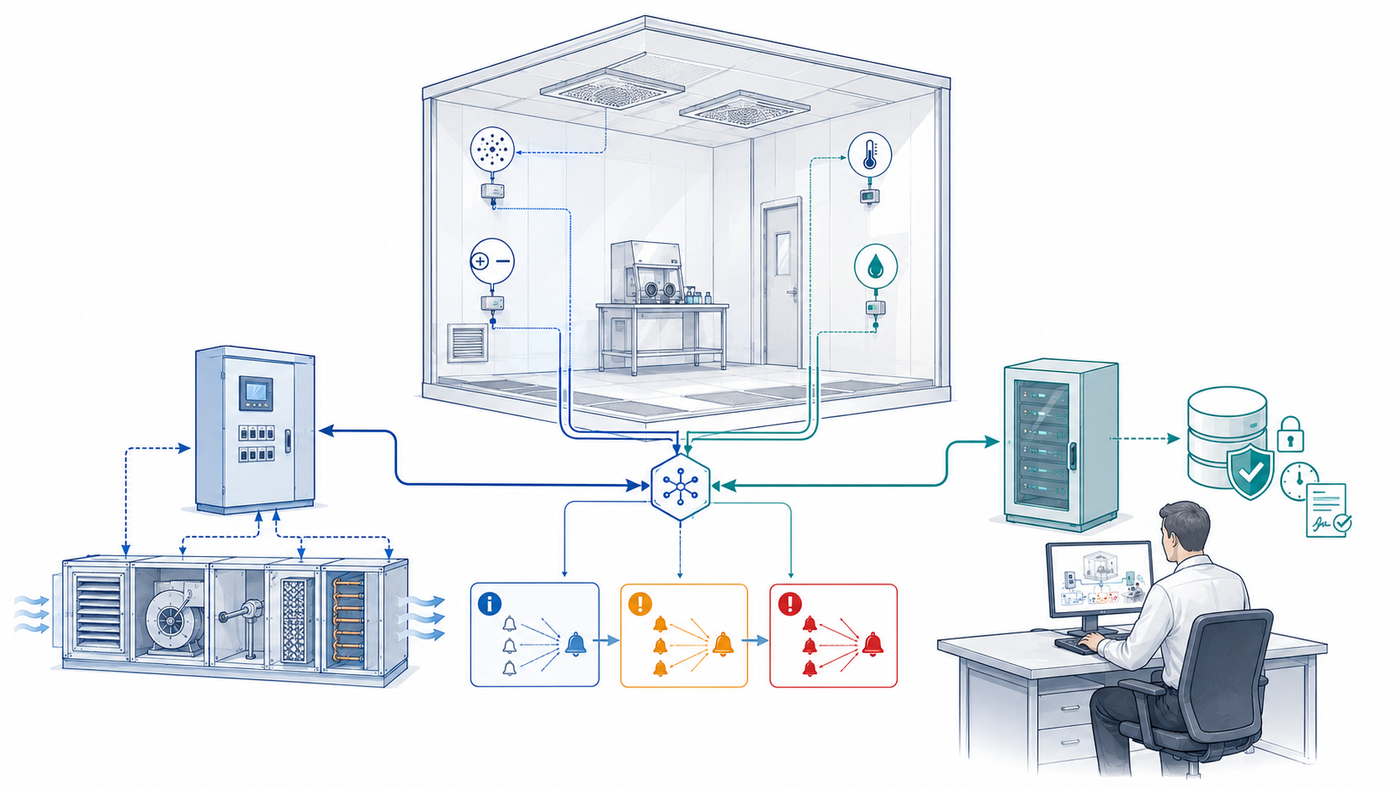

Architecture: PLC, SCADA, BMS, EMS, historian

The chain is always the same: field instrumentation, programmable controllers, supervision, historian. The BMS runs the plant and manages set points, sequences and changeovers; the EMS produces GMP evidence, with requirements aimed at retention and reconstruction. Confusing the roles yields a system that controls well and testifies badly.

Three architectures are workable: a standalone EMS with its own instrumentation; an EMS fed from the BMS, which cuts duplication but makes the electronic data exchange a validated element under Annex 11 clause 5; and a single BMS declared as the GMP system, legitimate provided the whole of Annex 11 is applied to it. The choice must be justified and kept consistent with the HVAC architecture.

Alert, alarm and alarm rationalisation

In system language an alert flags a condition needing attention and an alarm one needing action: these are automation levels, distinct from the alert and action levels of the environmental monitoring programme. Mixing the two vocabularies produces procedures in which the operator cannot tell an engineering event from a quality one.

Rationalisation is a documented, approved activity. For each alarm you state variable and threshold, recipient, expected action, priority, closure criterion and the document justifying it: an alarm with no recipient or no expected action is noise, and noise trains people to silence. There is no universal acceptable number of alarms: the load is measured on site data and reduced under change control. Delays and hysteresis are justified against real room dynamics and verified in OQ; thresholds are covered in temperature, humidity and pressure.

Data integrity: Annex 11 applied to monitoring

The Annex 11 in force is the January 2011 revision. Clauses 3.1–3.4 require documented assessment of supplier and service provider and formal agreements on responsibilities: the integrator programming the BMS falls here. Clauses 4.1–4.8 call for risk-proportionate validation, a system inventory — including BMS, EMS and local stations — a URS built on risk assessment, documented testing and control of data migration. Clause 6 adds a check on manually entered data, gauge readings transcribed onto a logsheet included.

Clause 7.1 requires protection of stored data and periodic verification of accessibility and readability; 7.2 requires backup and periodic monitoring of restore capability, meaning the restore is exercised, not merely that the backup ran. Clause 8 wants printouts showing whether data changed after acquisition; clause 9 requires a system-generated audit trail, reviewed at a defined and justified periodicity. Clauses 10 and 11 govern change management and periodic evaluation, which is not the periodic requalification of Annex 1 §4.32, with a maximum interval of 6 months for grades A and B and 12 months for C and D [REQUIREMENT].

Clauses 12.1–12.4 are where HVAC systems fail most often: access restricted to authorised persons, recording of changes to authorisations, and identity plus date and time on every change to critical data. A maintenance account shared between contractor and site is incompatible with that provision, which also makes time synchronisation binding: one declared time source for every system contributing to the record. As regulatory watch, the draft revision of Annex 11 and the proposed Annex 22 were in consultation from 7 July to 7 October 2025 and are not adopted as of 30 August 2026.

21 CFR Part 11: applicability to be determined

Part 11 does not apply automatically because a system is electronic: it depends on the market served and on a predicate rule requiring that record, and for a monitoring system supporting aseptic processing the candidates are 21 CFR 211.42(c)(10) and 211.68. The assessment is documented system by system and record by record. The September 2003 guidance states enforcement discretion on validation, audit trail and record copying, while confirming that "part 11 remains in effect": the discretion covers neither access controls nor electronic signatures.

Remote access and cybersecurity

Remote support access must be named, logged, time-limited and privilege-limited, and covered by the quality agreement with the service provider. Cybersecurity is not an explicit requirement of the 2011 Annex 11, but a compromised system is not a validated one: network segmentation, patching under change control and access monitoring support clauses 12 and 16 [GEP].

Decisions to be justified through QRM

ICH Q9(R1), Step 4 on 18 January 2023, is methodology and contains no monitoring parameters; its Annex II.4 applies QRM to facilities, equipment and utilities. Formality as a continuum (§5.1) scales validation depth and audit trail review periodicity to system impact; subjectivity and bias (§5.3) explain why instrument criticality is not for the automation engineer alone to decide. FMEA, HAZOP and risk ranking and filtering order measurement points, alarms and privileges [QRM].

Worked example: Site Vega

Site Vega is a realistic but fictitious example: a grade C and D suite with a pre-existing BMS and an EMS added later for particulate only. A periodic review shows that the differentials declared critical in the CCS are recorded by the BMS alone, that its audit trail does not cover set point changes, and that two stations have unsynchronised clocks.

The decision was not to replace the BMS. Critical differentials moved to the EMS with dedicated probes; at non-critical points the BMS remained a technical system, declared as such in the CCS; shared accounts became named profiles; and a single site time source was declared. Requalification was planned as an activity distinct from periodic evaluation, as set out in requalification and retrofit.

Decision matrix: who holds the GMP record

Levels of prescriptiveness

Operational checklist

1. State in the CCS which parameters are critical and who holds the record.
2. Carry the same decision into the URS, with the validation deliverables.
3. Classify instruments by criticality and keep it under change control.
4. Approve every probe location and freeze it in the as-builts.
5. List BMS, EMS and local stations in the system inventory.
6. Remove shared accounts and record every change to permissions.
7. Declare one site time source and handle the clock change.
8. Justify the audit trail review periodicity and keep the evidence.
9. Exercise the restore of historical data and keep the test report.
10. Give every alarm a recipient, an expected action and a closure criterion.
11. Verify delays and hysteresis in OQ against real room dynamics.
12. Plan periodic evaluation separately from requalification.

Recurring mistakes and red flags

• Never deciding which system holds the record, so it surfaces during an inspection.
• Archiving controller-averaged values and calling them raw data.
• Declaring Part 11 applicable or not without a documented assessment.
• Treating the revised Annex 11 or Annex 22 as in force: as of 30 August 2026 they are not.
• Confusing periodic evaluation with the periodic requalification of Annex 1.
• Regular backups with no documented restore test.

To turn these principles into documents that hold up in an inspection, The Pragmatic GMP is the GuideGxP newsletter: short analyses on qualification, HVAC and contamination control, from its dedicated page.

Key takeaways

• The BMS controls, the EMS testifies: who holds the record is an architectural choice.
• Annex 1 §4.16 requires continuous recording and alarms for critical differentials, identified by the CCS.
• The Annex 11 in force is the January 2011 one: the revision and Annex 22 are not adopted.
• Part 11 does not apply by default: applicability is determined and documented.
• Every alarm needs a recipient, an expected action and a closure criterion.
• Calibration intervals, delays and review periodicity are justified on site data.
