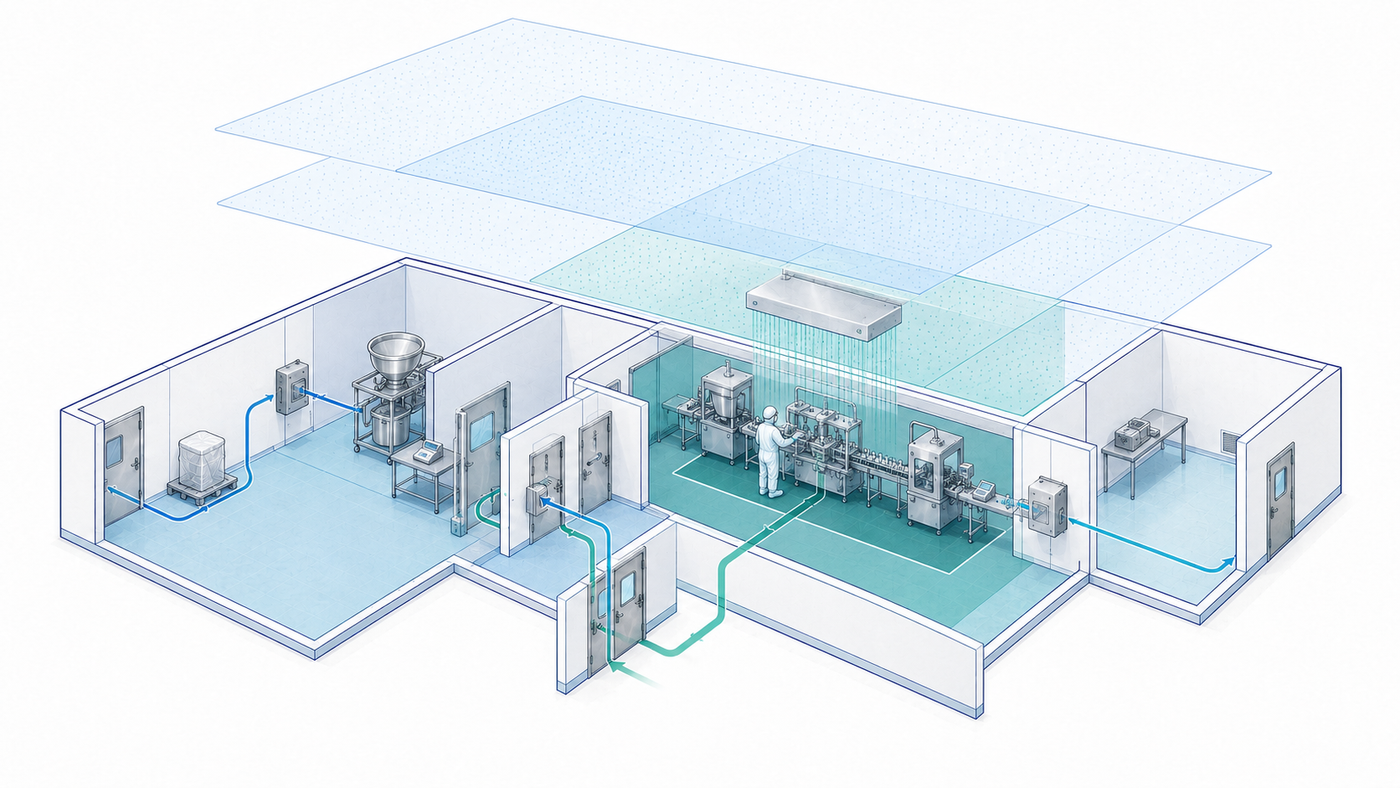

Cleanroom Zoning and Classification: How to Define Grades, ISO Classes and Room Adjacencies

The layout of a sterile facility almost always reaches the meeting room already drawn: walls, corridors and numbered doors. Missing is the document explaining why that room is grade C rather than grade B, why the component store sits next to gowning, and why waste leaves through the corridor sterilised materials come in by. Without those answers in writing, zoning was not designed: it was inherited from the architecture.

The bill arrives later. At tender stage, because without a stable zoning map suppliers price different classified areas and the bids are not comparable. At qualification, because a grade with no rationale has no defensible acceptance criteria. In operation, because every excess square metre of classified space means treated air, filters, monitoring and gowning for the whole life of the facility.

Only one sequence is defensible: process map, product exposure points, grade required at each point, adjacencies and flows, areas and volumes, and only then HVAC loads. The zoning map is a versioned deliverable, approved before the layout is frozen and referenced in the Contamination Control Strategy, for which Annex 1 requires implementation, continuous review and impact assessment of changes (§2.3, §2.5, §2.6). For the document downstream see the URS for cleanrooms and HVAC systems; this article belongs to the Cleanrooms & HVAC Systems hub.

What actually binds you

From the process map to the zoning map

Zoning is built by interrogating the process, not the building. Every step needs four pieces of information: whether product or contact surfaces are exposed, for how long, with what human intervention, and what contamination at that point would cost. From this follows the distinction that outweighs all others: a closed system moves protection from the room to the equipment and lowers the grade demand, while a system that opens even only for sampling must be classified for that moment.

The second distinction is sterile versus non-sterile. In non-sterile the dominant driver is cross-contamination, and Chapter 5 lists among the technical measures dedicated facilities, closed systems, isolators, airlocks and pressure cascade. In sterile the driver is protection of the exposed product, and Annex 1 §4.3 requires a strategic assessment of RABS or isolators: the two logics can call for cascades running in opposite directions in one site.

GMP grade and ISO class: what the relationship really is

This is where the industry gets it wrong most often, and the error enters the specification before it ever reaches the protocol. ISO 14644-1 defines ISO classes based on total particle concentration alone, measured with an optical particle counter between 0.1 and 5 µm [STANDARD], in a stated occupancy state: it is a voluntary method document. Annex 1 defines grades A, B, C and D, which are not air cleanliness classes but regulatory categories of environment, defined by a set of requirements: total particle limits and microbiological limits and requirements for airflow, pressure differentials, gowning and permitted activities.

Annex 1 sets its own limits and refers to the ISO 14644 series only as a methodological reference (§4.25), and to ISO 14644-1 for the number and location of sampling points (§4.28) [STANDARD]. No explicit reference to ISO 14644-2 appears in Annex 1, and §4.24 requires the qualification methodology to follow Annex 15 and qualification, classification included, to be clearly distinguished from operational environmental monitoring. Writing "Grade A = ISO 5" replaces a set of requirements with one parameter: the statement is wrong, and it produces incomplete acceptance criteria.

Only one comparative formulation is defensible: FDA, in its 2004 aseptic processing guidance, states that an ISO 5 concentration "approximately equals EU Grade A" [GUIDANCE] — an approximation declared in a nonbinding document, never a European regulatory equivalence. Limits are read as grade-state pairs: Annex 1 Table 1 sets, for grade A, 3,520 particles of 0.5 µm and above per cubic metre both at rest and in operation, and for grade B the same value at rest but 352,000 in operation [REQUIREMENT]. Between those rooms the difference is not the air at rest, it is what you are allowed to do inside. Table 2 adds the microbiological qualification limits, "no growth" for grade A [REQUIREMENT].

Occupancy states: three in the standard, two in Annex 1

ISO 14644-1 works with three occupancy states — as-built, at-rest, operational — and a class designation is incomplete unless it states which applies. Annex 1 uses two, with its own definitions: "at rest" means utilities complete with HVAC running, main equipment installed but not operating, and no personnel present; "in operation" means the installation complete, HVAC fully operational, equipment functioning in the defined operating mode, and the maximum number of personnel performing or simulating routine work (§4.29) [REQUIREMENT]. Classification is required in both states for all four grades.

The distinction is not terminological. "As-built" describes a finished, empty room, and no Annex 1 acceptance criterion refers to it. Personnel numbers and simulated activities must be written down before qualification, otherwise the state measured is not the state required. At-rest limits must then be achieved after a clean up period, given as a guidance value of less than twenty minutes and determined during qualification (§4.29(iii)) [GUIDANCE]. The test package is in cleanroom qualification to ISO 14644.

Adjacencies, flows and airlocks: where zoning becomes geometry

Three flows remain to be closed: personnel, materials, waste. Annex 1 treats the transfer of materials and equipment into and out of the cleanroom as a major risk to be assessed and controlled (§4.10) and requires transfers into A and B to be unidirectional, preferably through a steriliser, with separate exit routes (§4.11). Airlocks separate different grades and are flushed with filtered air; PAL and MAL must be separate (§4.12); airlock and pass-box doors must not be opened simultaneously, and an interlock is required for grade A/B (§4.13) [REQUIREMENT].

Annex 1 §4.14 requires filtered air that maintains a positive pressure and an appropriate airflow relative to the lower-grade background under all operating conditions, and states a minimum differential of 10 Pa between adjacent rooms of different grade, explicitly qualified as a guidance value [GUIDANCE]. The number must be verified against real geometry, door leakage and door-opening logic. Differentials identified as critical in the CCS must be continuously monitored and recorded, with alarms (§4.16) [REQUIREMENT]. Cascade sizing is in airflow and pressure cascades.

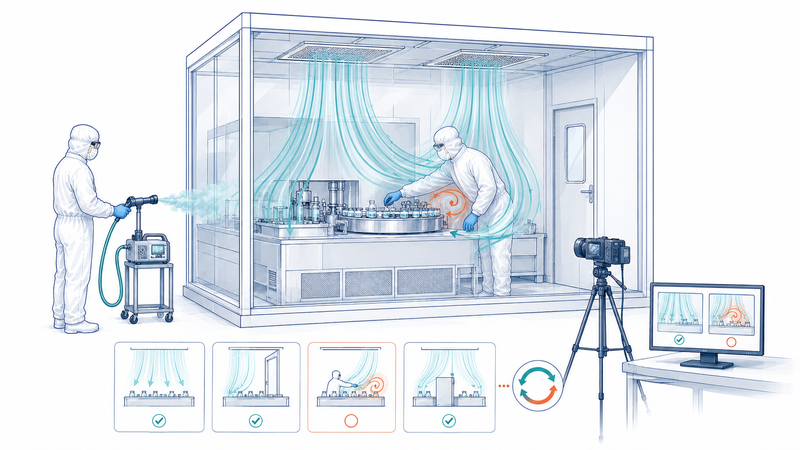

An adjacency is acceptable only if it survives dynamic verification. Airflow patterns must be visualised to demonstrate that air does not ingress from a lower to a higher grade, and does not travel from less clean areas — the floor, for instance — or over operators and equipment (§4.15) [REQUIREMENT]. CFD remains predictive: it replaces neither qualification, nor visualisation, nor field testing. Protocol and execution are in airflow visualisation studies; airlock geometry and gowning in finishes, airlocks and hygienic construction.

CNC: a declared choice, not a regulatory category

"Controlled not classified" does not appear in Annex 1 and is not a class. It is an engineering label for areas where controls are applied — filtration, overpressure, restricted access, defined gowning, scheduled cleaning — without a declared classification or the qualification a grade would require. Using it is legitimate; leaving out the rationale is not. What is needed is the list of CNC rooms in the CCS, the controls maintained in each, and the risk assessment explaining why the work done there needs no grade. The usual drift runs the other way: the area is born CNC to avoid qualifying it, and an operation that would have needed a grade later migrates into it.

Justifying the choices with QRM

Annex 1 §2.2 requires QRM to be applied with priority given to design over end testing, and notes that monitoring demonstrates rather than guarantees; §2.4 requires the collective effectiveness of control measures to be assessed. ICH Q9(R1) is the method: Annex II.4 applies QRM to facilities, equipment and utilities, zoning included, and Annex I lists the tools, from FMEA to HACCP and HAZOP. Q9(R1) contains no HVAC design parameter [QRM]. Its recognition of subjectivity and bias (§5.3) matters here: in zoning, bias shows up as the tendency to confirm the layout already drawn.

Worked example: Site Vega

Site Vega is a realistic but fictional example. Vega must fit a small-volume aseptic filling line into an existing building, with no way to extend the grade B footprint. What counts is the risk profile and the operating burden, not the installation cost.

Levels of prescriptiveness

Working checklist

1. Map the process and mark every product exposure point.
2. State whether each step is open or closed, and for how long it stays open.
3. Assign the grade from the most critical point and check background consistency.
4. Record the rationale for each assignment in a traceable line.
5. Separate personnel, inbound and outbound materials and waste on the drawings.
6. Confirm PAL and MAL are distinct and required interlocks specified.
7. Define the "in operation" state with personnel numbers and simulated work.
8. List CNC areas with their controls and risk assessment.
9. Verify every critical adjacency with dynamic airflow patterns.
10. Estimate the requalification burden the map creates before approving it.
11. Update the CCS whenever the zoning map changes.

Recurring mistakes and red flags

• Specifications that say "Grade B, i.e. ISO 7": a non-existent equivalence that leaves out microbiological limits, gowning and permitted activities. The same applies to the cascade, sink and bubble taxonomy presented as regulatory: Annex 1 distinguishes only PAL and MAL.
• As-built data used as GMP evidence: it is not a state Annex 1 recognises.
• CNC areas with no list, no written controls and no rationale: grey zones at inspection.
• Defensive over-classification: more high-grade area means more requalification and monitoring.
• A waste route that retraces the inbound route of sterilised materials.
• Zoning changed on site for construction reasons, with no change control and no CCS update.

If this kind of analysis is part of your work, The Pragmatic GMP newsletter works along the same lines: primary sources, an explicit distinction between requirement and recommendation, no number without its clause.

Key takeaways

• Zoning derives from the process and its exposure points: the layout is a consequence, not a constraint.
• ISO classes measure total particles only, in a stated state; Annex 1 grades are regulatory categories defined by a set of requirements.
• The only citable comparative statement is the FDA approximation between ISO 5 and Grade A, declared nonbinding.
• Adjacencies and flows are justified by PAL/MAL separation, unidirectional transfers and dynamic airflow verification.
• CNC is a choice declared in the CCS, not a class and not a shortcut around qualification.
