Ask what the proposed adjustment actually changes
A primary-drying run takes longer than expected, although shelf temperature and chamber pressure match the laboratory recipe. Increasing shelf temperature may accelerate drying, overheat peripheral vials or expose an equipment limitation. Before changing the recipe, determine whether the difference originates in heat delivery, vapour transport, freezing history or the measurement used to describe completion.
Heat and mass transfer provide a practical framework for this investigation. They connect equipment commands to product temperature and drying rate, but they do not eliminate the need for experiments. A model is useful when its parameters, assumptions and uncertainty are understood and tested against relevant observations.
Start by defining the comparison: the same formulation, container, fill height, loading pattern and phase of the cycle. Record achieved pressure and thermal profiles rather than only setpoints. Without this basis, an apparent scale effect may actually be a different vial, a changed loading frame or a sensor placed in a different product location.
Separate temperatures from heat flow
The shelf-fluid temperature, shelf-surface temperature, vial temperature and temperature within the product are distinct. Thermal resistance between these locations allows different values at the same time. During primary drying, energy is consumed by sublimation, so a product-temperature response cannot be inferred from shelf temperature alone.
The effective vial heat-transfer coefficient, Kv, relates heat delivery to a stated temperature difference and reference area. Its value combines mechanisms represented by the chosen model; it is not simply a property of the glass. Vial contact, chamber pressure, radiation and the surrounding loading configuration can all influence the estimate.
State which temperatures define the coefficient. A coefficient based on heat-transfer-fluid temperature differs conceptually from one referenced to the shelf surface. Likewise, product-bottom temperature is not identical to sublimation-interface temperature. Mixing definitions between laboratory measurements, supplier documentation and production calculations creates errors that can remain hidden behind apparently consistent units.

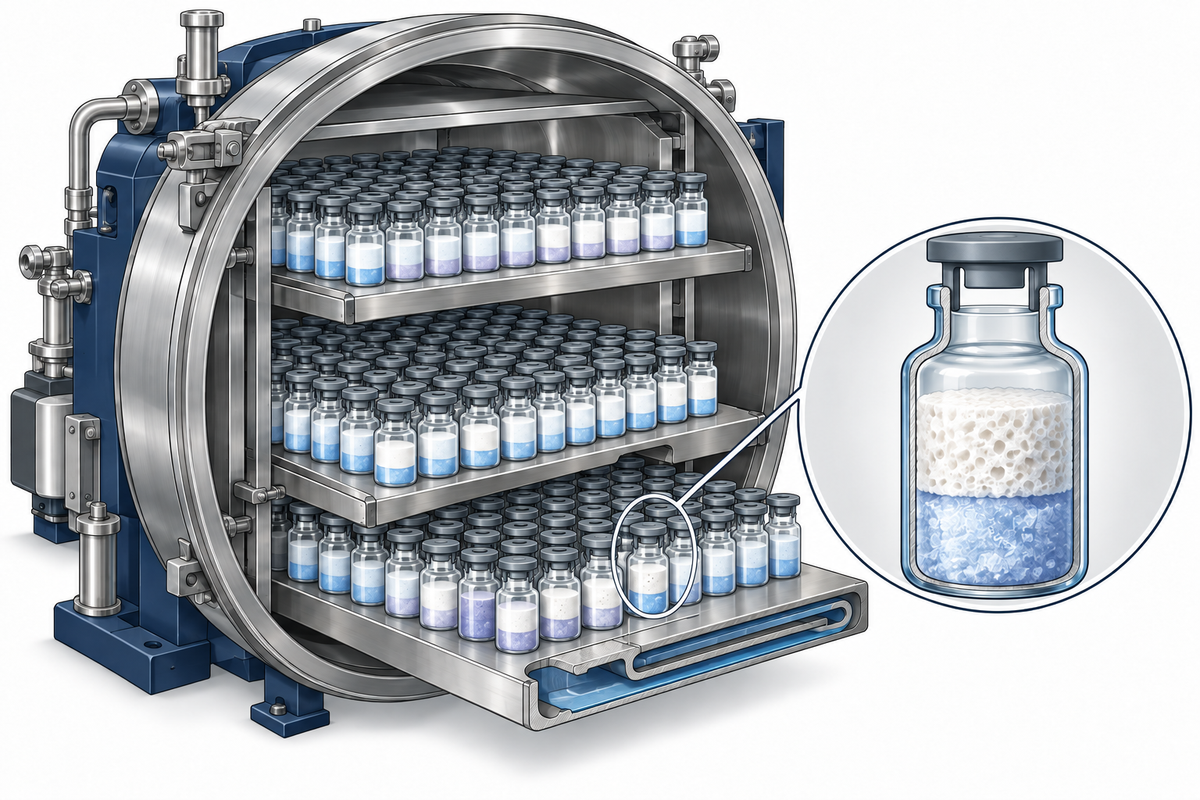

Identify the heat-transfer pathways
Direct contact between shelf and vial supports conduction, but the real contact area depends on bottom geometry and surface condition. Gas in the gap provides another conductive pathway whose contribution changes with pressure and gas composition. Radiation from shelves, walls, doors and nearby structures provides additional energy.
These pathways explain why nominally interchangeable containers may behave differently. Vial-bottom shape, material and dimensions, as well as trays or nests, can alter effective heat transfer. A shelf uniformity study is relevant to equipment performance, but does not by itself establish uniform product temperature for a loaded batch.
For an engineering comparison, describe the whole arrangement. Include shelf spacing, loading density, tray or frame, adjacent empty spaces and relevant thermal boundaries. Do not attribute every difference to one mechanism without supporting evidence. The relative contributions depend on the specific operating regime, and an effective coefficient can conceal compensating changes between mechanisms.
Use a heat-balance equation with explicit assumptions
A useful simplified relationship is Qdot ≈ Kv × Av × (Ts − Tb). Qdot is heat flow to the vial in watts; Kv is the effective coefficient in W/(m²·K); Av is the reference vial area in m²; Ts and Tb are the stated shelf and product-bottom temperatures. Temperature differences can be expressed in kelvin or degrees Celsius.
During approximately steady primary drying, Qdot ≈ mdot × ΔHsub may also be useful. Here mdot is the sublimation mass rate in kg/s and ΔHsub is the enthalpy of sublimation in J/kg. This approximation assumes that energy storage and other heat terms are sufficiently small for the intended calculation.
These relationships are diagnostic tools, not acceptance criteria. Rapid ramps, start-up, the end of primary drying and substantial temperature gradients may require transient or spatial treatment. If a fitted Kv absorbs an unmodelled radiation contribution, it may not remain transferable after changing the loading arrangement. Report uncertainty and the conditions under which the coefficient was obtained.
Define the vapour-transport resistance correctly
Water vapour leaves the sublimation interface and passes through the dried product structure and partially stoppered vial before reaching the condenser. Rp commonly denotes resistance associated with the dried layer. Its value depends on morphology and on the path length that develops during drying; it is not necessarily constant through the cycle.
For an area-normalized definition, a simplified expression is mdot ≈ Ad × [pice(Ti) − pw,c]/Rp. Ad is the sublimation reference area in m²; pice(Ti) is equilibrium water-vapour pressure over ice at interface temperature Ti; pw,c is water-vapour partial pressure in the chamber, both in pascals. Rp then has units Pa·m²·s/kg.
This form neglects other resistances and assumes a suitable representation of the interface and vapour pathway. If stopper or equipment resistance matters, it must be included consistently. Do not substitute a resistance expressed per vial into an area-normalized equation. The reference areas Av and Ad also serve different purposes and must not be exchanged without justification.
Connect freezing and fill geometry to Rp
The freezing history helps establish the pore structure remaining after ice removal. Nucleation temperature, crystal growth, annealing where justified and formulation behaviour can therefore affect subsequent resistance. Controlled nucleation may produce a more consistent structure, but this must be demonstrated for the intended product and load.
Fill height changes the distance vapour travels through the cake and the mass of ice per vial. Increasing fill volume without changing container diameter can consequently affect both drying time and the evolving resistance. Concentration or excipient changes can alter morphology even when the fill dimensions remain the same.
Measure or estimate Rp using a method with understood limitations. A parameter inferred from product temperature and Kv inherits uncertainty from both measurements and the model. A manometric-temperature-measurement estimate can be influenced by thermal heterogeneity and the populations contributing to the pressure rise. Report the method and conditions with the result, rather than treating Rp as an intrinsic formulation number.
Treat peripheral and central vials as different populations
Peripheral vials may receive additional radiation from walls, doors or loading structures. Frames can transfer heat as well as change the radiative environment. Automatic loading without a surrounding band may therefore behave differently from laboratory trays, even with the same nominal shelf temperature and chamber pressure.
The warmest vial is not automatically the last to finish drying. A higher heat input can increase sublimation while another population, with lower heat transfer or higher resistance, remains ice-containing. The critical location depends on the question: maximum product temperature, latest primary endpoint or final moisture distribution.
Develop a positional sampling and modelling strategy that separates these risks. Include plausible peripheral, central and shelf-related differences, and consider partially filled loads or gaps. Avoid declaring a universal worst-case location. The number and distribution of sensors and samples should follow the physical questions and supporting variability data, not an arbitrary standard array.
Evaluate pressure as a coupled variable
Pressure affects both gas-mediated heat transfer and the available vapour-pressure difference. Lowering it may increase a mass-transfer driving force while decreasing a heat-transfer contribution. The net effect depends on the coupled system, which is why a rule such as “use the deepest vacuum” is not a defensible optimization strategy.
The transport equation requires water-vapour partial pressure, whereas a capacitance manometer indicates total pressure. They may be similar under some primary-drying conditions but diverge when noncondensable gas becomes important. Gas admission for control, leakage and changing process composition must be considered before applying an approximation.
Use absolute pressure and consistent units throughout the calculation. Preserve sensor location, calibration status and actual control behaviour. A pressure reading at one position cannot automatically establish conditions throughout the chamber and connecting duct. When control becomes unstable, investigate the equipment and signal behaviour before treating the excursion as a new steady operating point.
Respect equipment capability as a separate constraint
The product may tolerate a proposed thermal condition while the dryer cannot sustain its vapour load. Refrigeration performance, condenser heat removal, available ice surface and the chamber-to-condenser path can restrict operation. Total ice-storage capacity and maximum instantaneous sublimation rate are different specifications.
At a flow limitation, increasing heat input can raise chamber pressure instead of delivering the intended controlled drying rate. Choked flow is a fluid-dynamic limit associated with the vapour path; its onset must be characterized for the equipment. Published chamber-to-condenser pressure ratios are not universal thresholds.
Equipment-capability studies can establish the achievable operating envelope under defined conditions. Compare the product's predicted vapour demand with that envelope, including uncertainty and the relevant phase of the load. Ice-slab or water studies provide equipment information, but do not replace product characterization, aseptic qualification or demonstration that all product CQAs remain acceptable.
Build a model that can answer the decision
Choose model detail according to the question. A simplified steady model can support screening and identify sensitivities; a transient or spatial model may be needed for ramps, heterogeneous loads or detailed failure investigations. More parameters do not automatically improve reliability if they cannot be identified from available data.
Separate parameter estimation from verification. Use independent observations or runs, where practical, to test predictions across relevant conditions. Review product-temperature profiles, duration, vapour demand and residuals together. A match at one central vial can hide errors at the periphery or near the end of primary drying.
The following original matrix helps connect observations to investigations.
| Observation | Plausible explanation | Evidence that separates hypotheses |
|---|---|---|
| Warmer peripheral vials | Additional radiation or frame conduction | Position-specific temperature and loading comparison |
| Longer drying with unchanged setpoints | Higher Rp, lower Kv or different achieved profiles | Freezing records, container data and parameter studies |
| Pressure rises at high heat input | Equipment demand exceeds sustainable capability | Vapour-load estimate and capability characterization |
| Model fits centre but misses edge | Incomplete thermal boundary representation | Peripheral observations and frame/wall assessment |
| Secondary drying differs unexpectedly | Changed gas composition, morphology or thermal mass | Moisture trajectory and phase-specific heat balance |
Work through a transfer example
A development cycle uses vials in a metal frame, while the receiving production dryer loads directly onto shelves. The initial comparison assumes identical Kv because the glass and pressure are unchanged. That assumption overlooks altered radiation and frame contact, especially around the perimeter.
The team characterizes representative heat transfer in both configurations, reviews freezing history and derives a defensible Rp description. It evaluates central and peripheral temperature predictions against observations and checks total vapour demand against production equipment capability. The receiving recipe may need different settings to reproduce the intended product response.
Acceptance is based on the relevant CQAs and justified operating margins, not on identical shelf trajectories. If uncertainty remains large, additional targeted experiments are preferable to an unsupported correction factor. The documented result includes parameter definitions, loading arrangement, comparison data and the boundaries within which the model can inform future changes.
This example also illustrates why scale-up is not simple recipe copying. The transferable objective is acceptable product behaviour under controlled conditions; the equipment commands are the means selected to achieve it.
Protect robustness throughout the lifecycle
Secondary drying requires its own attention. After sublimation subsides, gas composition and energy distribution change, and a greater share of heat may warm the vial and product. A primary-drying Kv should not automatically be reused unchanged. Morphological changes that accelerate primary drying may also slow desorption, so optimize the complete cycle.
Before approving an improvement, ask whether the analysis includes formulation variability, container tolerances, minimum and maximum loads, relevant positions and equipment uncertainty. Check that measurements use consistent definitions and that conclusions remain inside the tested range. These are engineering and quality-risk-management recommendations; the applicable validation strategy provides the formal evidence for routine use.
Maintain the model and supporting dataset under appropriate change control. New vial suppliers, revised fill volumes, replacement shelves, loading-system modifications or refrigeration changes may require reassessment. The key warning signs are unexplained coefficients, a universal pressure rule, excessive numerical precision and validation based solely on a matching cycle time. Robustness comes from explaining why product performance remains acceptable when realistic conditions vary.
Sources and scope
Sources checked on 26 September 2026. Apply requirements within their jurisdiction and scope. Scientific evidence and engineering recommendations do not establish universal cycle settings. Examples are illustrative. For licensed documents, only public scope and edition were verified; research access limitations are recorded in the source register.
- Mass and heat transfer in vial freeze-drying of pharmaceuticals: role of the vial (1984) — Scientific principle.
- Evaluation of manometric temperature measurement, a process analytical technology tool for freeze-drying: part II measurement of dry-layer resistance (2006) — Scientific principle.
- Freeze-Drying Process Development and Scale-Up: Scale-Up of Edge Vial Versus Center Vial Heat Transfer Coefficients, Kv (2016) — Scientific principle.
- Freeze-Dryer Equipment Capability Limit: Comparison of Computational Modeling With Experiments at Laboratory Scale (2019) — Scientific principle.
- Equipment Capability Measurement of Laboratory Freeze-Dryers: a Comparison of Two Methods (2021) — Scientific principle.
- Comparison of vial heat transfer coefficients during the primary and secondary drying stages of freeze-drying (2023) — Scientific principle.
- ICH Q8(R2) — Pharmaceutical Development — Q8(R2), Step 5 EU text — Guidance.
