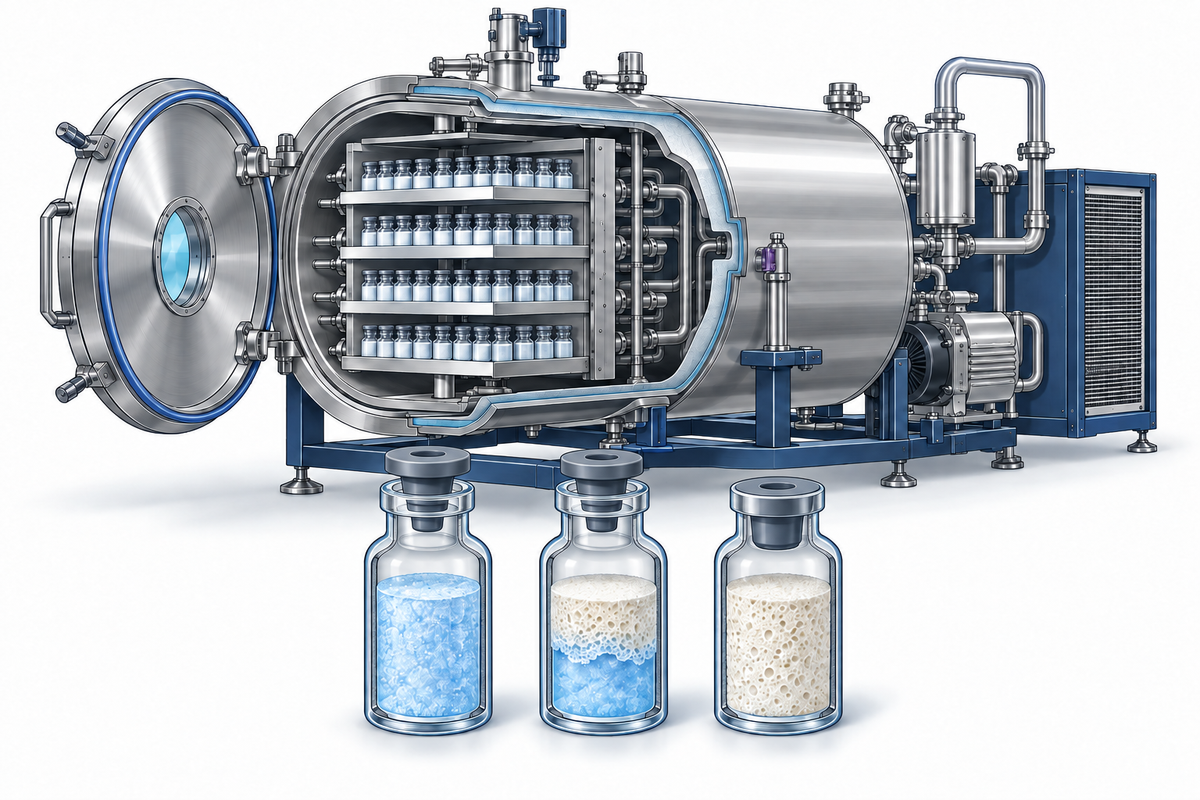

Developing a Pharmaceutical Freeze-Drying Cycle: Freezing, Primary Drying and Secondary Drying

Start with the product decision

A development team has a visually acceptable laboratory batch and wants to shorten the cycle before transferring it to production. The useful question is not how much shelf temperature can be increased. It is which product attributes must remain controlled, which physical constraint currently limits drying, and how much uncertainty the proposed change introduces. An attractive cake obtained once does not establish a robust process.

Freeze-drying cycle development connects formulation knowledge, container characteristics and equipment capability. Freezing establishes the ice structure; primary drying removes ice predominantly by sublimation; secondary drying removes remaining water predominantly by desorption. Simply freezing a solution accomplishes none of the subsequent drying objectives. Each phase changes the conditions inherited by the next, so optimizing phases independently can produce a longer or less reliable overall cycle.

Define the intended manufacturing presentation first: composition, concentration, fill volume, container and closure, batch range, loading arrangement and target equipment. Record unresolved assumptions explicitly. Development should generate decisions and evidence that can support qualification, transfer and process validation, rather than a recipe whose rationale disappears when the original scientist leaves.

Establish the product and analytical basis

Identify relevant critical quality attributes, or CQAs, before selecting conditions. Depending on the product, these may include potency, purity, aggregation, particles, residual moisture, reconstitution performance and appearance. Define how each will be measured, when samples will be taken and what evidence supports the proposed acceptance range. An endpoint signal is not an analytical measurement of all these attributes.

Characterize the formulation actually intended for manufacture. A placebo may support preliminary equipment studies but cannot automatically represent the active formulation's thermal behaviour, resistance or stability. Changes in concentration, buffer, excipient ratio or fill height can invalidate otherwise familiar assumptions. Include the possibility of crystallization, phase separation and freeze-concentration effects without turning the engineering assessment into a complete formulation programme.

Container details belong in the starting dataset. Vial geometry, bottom contact, fill height, stopper opening and loading frame influence heat or vapour transport. A container substitution is therefore a process change, even when nominal volume remains unchanged. Keep supplier drawings, material specifications and representative physical samples connected to the development record.

Distinguish the critical temperatures

For an amorphous system, Tg describes glass transition at a specified composition and water content. Tg′ refers to the glass transition of the maximally freeze-concentrated amorphous phase. Collapse temperature, Tc, concerns structural failure observed during drying. These quantities are related, but they are neither interchangeable measurements nor separated by a universal temperature difference.

Differential scanning calorimetry and freeze-drying microscopy answer complementary questions. Interpret the method, heating history, event definition and uncertainty with the result. A microscopy onset in a thin specimen does not automatically describe every location in a filled vial. Mixed formulations may contain crystalline and amorphous fractions, so a single label such as “crystalline product” can conceal the phase that constrains the cycle.

Eutectic melting and amorphous collapse also require different explanations. Collapse involves loss of structural support through viscous flow; melt-back involves melting of frozen material, including eutectic melting where relevant. Neither the equilibrium freezing point nor a generic literature value is an adequate primary-drying limit. Establish a justified product-temperature boundary using formulation-specific characterization and relevant drying evidence.

Design freezing rather than merely cooling

The shelf cooling programme is an equipment instruction; product cooling and ice nucleation are responses. Supercooling describes a liquid remaining unfrozen below its equilibrium freezing temperature. Nucleation is stochastic unless an effective intervention controls it. Consequently, identical shelf ramps can generate different nucleation histories between vials or between laboratory and production equipment.

Evaluate the resulting ice structure because it influences the pathways left for water vapour during drying. Controlled nucleation can reduce variability in suitable systems, but its implementation must be demonstrated across the intended load. Confirm what happens after nucleation: crystal growth, completion of freezing, shelf recovery and any hold period remain relevant. A synchronized initial event does not guarantee identical final microstructure.

Assess freezing completion using a combination of thermal behaviour and characterization appropriate to the formulation. Avoid assuming that a cold shelf proves the entire fill has reached the intended state. Instrumented vials may nucleate differently from uninstrumented vials, and a probe near the bottom describes one location. Select observations that address these limitations rather than simply increasing sensor count.

Use annealing only for a defined purpose

Annealing is a controlled thermal treatment of the frozen formulation, introduced to achieve a specific objective such as modifying ice morphology or promoting justified crystallization. It is not a mandatory stage of every pharmaceutical cycle. Its value depends on the formulation and on the consequences for subsequent drying and product stability.

Specify the question before the experiment. Is the intended effect lower dried-layer resistance, reduced heterogeneity, completion of a desired crystalline phase or avoidance of an unstable intermediate? Select characterization that can distinguish success from a superficially similar appearance. A change in cake texture alone cannot demonstrate the intended solid-state transformation.

Assess both benefit and cost. A treatment that shortens primary drying may lengthen the freezing phase, alter protein stress or change secondary-drying behaviour. Document the thermal window and duration explored, the response and the rationale for retention or omission. Do not transfer a successful annealing condition from another formulation merely because both contain the same major excipient.

Build primary drying around coupled constraints

Primary drying requires heat to supply the energy of sublimation and a vapour pathway through the dried layer, stopper opening and equipment. Raising shelf temperature changes heat input, but product temperature emerges from the coupled heat and mass balances. Shelf temperature and heat flux are not equivalent, and the product can remain substantially different from the shelf while ice sublimes.

Use measured or justified vial heat-transfer coefficients and product resistance to interpret the process. Kv depends on contact, gas conduction, radiation and configuration. Rp reflects the dried-layer pathway and changes as drying progresses. The slowest-drying population and the warmest population may differ, particularly when edge effects and freezing heterogeneity coexist.

The equipment must also handle the instantaneous vapour load while controlling pressure. Condenser ice-storage capacity does not establish maximum sustainable sublimation rate. Vapour-path restrictions, refrigeration performance and pressure-control capability can limit an otherwise acceptable product cycle. A development design space must account for these constraints; an experimentally explored range is not automatically an approved regulatory design space.

Choose pressure and temperature together

Chamber pressure affects vapour transport and gas-mediated heat transfer. Lower pressure is therefore not an unconditional route to faster drying. A change may improve one driving force while reducing a heat-transfer contribution or moving the dryer closer to an equipment limitation. Explore pressure and shelf-temperature combinations with a physical hypothesis, rather than optimizing each setting in isolation.

Distinguish measured total chamber pressure from the water-vapour partial pressure used in transport reasoning. Their relationship depends on gas composition and operating conditions. Controlled gas admission, leaks and late-primary-drying changes can matter. State the assumptions whenever a simplified model uses total pressure as an approximation for the relevant vapour pressure.

Translate predicted results into experiments with uncertainty. Challenge plausible variations in fill, loading and thermal behaviour, not only the nominal case. Document actual achieved profiles, control deviations and model residuals. A point close to a predicted failure boundary requires stronger evidence than a nominal calculation reporting several decimal places.

Establish a defensible primary-drying endpoint

Moving into secondary drying while significant ice remains can expose part of the batch to collapse or melting. Endpoint development must therefore address batch heterogeneity, not only the first instrumented vial that warms. A product-temperature rise can be useful evidence, but its interpretation depends on probe position and whether that vial represents the slower population.

Comparative Pirani and capacitance-manometer behaviour provides complementary batch information. Pirani response depends on gas thermal conductivity, whereas capacitance measurement is substantially independent of gas species. Their changing relationship can indicate declining water vapour. It does not directly measure ice in every vial, nor does convergence establish the final residual-moisture specification.

Develop the decision rule against independent evidence, such as appropriately designed sampling, moisture measurements and product assessment. Specify signal quality, persistence, exception handling and any justified additional hold. The validated operational rule may use time, analytical information or a justified combination. Its meaning must remain clear when transferred to a different dryer.

Develop secondary drying for the final product

Secondary drying targets remaining water through desorption and associated transport from the matrix. Temperature, duration, morphology and formulation influence the outcome. The process should achieve an evidence-based moisture range while preserving the relevant CQAs; “as dry as possible” is not a scientifically adequate objective.

The transition from primary to secondary drying deserves separate attention. Consider whether residual ice, nonuniform product temperatures or sensitive structures make the ramp consequential. Do not assume that heat-transfer behaviour remains unchanged: gas composition and energy distribution differ once sublimation subsides, and the vial's thermal mass can become significant.

Evaluate moisture distribution across representative locations and examine stability, reconstitution and other relevant responses. Lower residual water can improve some degradation pathways while excessive drying can harm some proteins. The final choice depends on product data and the container-closure system, including moisture exchange during storage. A successful drying endpoint and a justified shelf life are connected but distinct conclusions.

Organize experiments around decisions

A practical study matrix should connect each change to a measurable question. The following is an original planning aid, not a universal validation protocol.

Use sequential learning or a justified experimental design to separate interacting factors. Preserve failed and inconclusive runs because they help explain boundaries. Account for sampling disturbance and analytical variability before attributing every difference to the recipe. Replication should resolve the uncertainty of the decision; there is no universal development run count.

Apply the evidence to a realistic case

Consider a protein formulation whose laboratory primary drying is shortened by controlled nucleation. The initial proposal removes the saved time from the total cycle without changing secondary drying. A closer review shows that the modified ice structure reduced Rp but also changed specific surface area. The same secondary stage may now produce a different moisture distribution.

The team compares complete cycles using the intended fill and container, including representative peripheral and central locations. It reviews thermal histories, endpoint signals, moisture, reconstitution and product-specific stability indicators. Equipment-capability evidence is checked at the increased vapour demand. The decision is based on the complete product outcome, not only on the primary-drying duration.

If the benefit persists, the transfer package records nucleation performance, post-nucleation cooling, the basis of the endpoint rule and the secondary-drying rationale. If the apparent gain disappears, that is useful development knowledge. The appropriate outcome may be a more modest cycle change that remains dependable across manufacturing variability.

Release the development package, not just the recipe

Before freezing the development baseline, confirm that every selected phase has an objective, evidence and a defined response to deviations. Check whether limits refer to shelf, fluid, product or sublimation-interface temperature. Identify the load range represented, unresolved scale assumptions, relevant equipment constraints and the location of the underlying analytical data.

Under ICH Q8 and quality-risk-management principles, development knowledge supports a rational control strategy. It does not replace equipment qualification, product-specific process validation or applicable aseptic requirements. For sterile products, freeze-drying must remain connected to the aseptic process; it is not a sterilization step. Regulatory obligations and scientific recommendations must be identified separately.

The handover should contain the approved recipe definition, development report, analytical rationale, characterization methods, sampling approach, uncertainty assessment and change triggers. Common red flags are an unexplained safety margin, a copied moisture target, missing unsuccessful studies and reliance on a single attractive cake. A robust cycle is one whose product performance and operating limits can be explained and verified by the receiving team.

Sources and scope

Sources checked on 26 September 2026. Apply requirements within their jurisdiction and scope. Scientific evidence and engineering recommendations do not establish universal cycle settings. Examples are illustrative. For licensed documents, only public scope and edition were verified; research access limitations are recorded in the source register.

• The collapse temperature in freeze drying: Dependence on measurement methodology and rate of water removal from the glassy phase (1990) — Scientific principle.
• The ice nucleation temperature determines the primary drying rate of lyophilization for samples frozen on a temperature-controlled shelf (2001) — Scientific principle.
• Influence of controlled ice nucleation on the freeze-drying of pharmaceutical products: the secondary drying step (2017) — Scientific principle.
• Determination of end point of primary drying in freeze-drying process control (2010) — Scientific principle.
• Comparison of vial heat transfer coefficients during the primary and secondary drying stages of freeze-drying (2023) — Scientific principle.
• The Influence of Moisture Content and Temperature on the Long-Term Storage Stability of Freeze-Dried High Concentration Immunoglobulin G (IgG) (2020) — Scientific principle.
• ICH Q8(R2) — Pharmaceutical Development — Q8(R2), Step 5 EU text — Guidance.
• ICH Q9(R1) — Quality Risk Management — EMA Step 5 Revision 2, Corr.2; ICH revision R1 — Quality risk management.
