Orbital Shakers: Qualification, Speed and Orbit Control

Start with intended use and the required outcome

Orbital shaker qualification should answer a practical question: does the system support the intended preparations in authorised configurations? List relevant matrices, vessels, volumes, duration, speed range and environmental conditions. Clarify whether the purpose is liquid mixing, maintaining a suspension or assisting a preparation step.

Define the observable outcome and the next operation. Absence of visible sediment does not necessarily demonstrate concentration uniformity; moving liquid does not prove adequate recovery. Equipment tests and application tests answer different questions and must be connected without being confused.

Translate requirements into a risk-proportionate plan with responsibilities and criteria approved before execution. Annex 15 provides the qualification and change-management framework. Test scope should follow actual use rather than copying another laboratory’s entire protocol.

Define orbit, diameter, radius and speed

In ideal orbital motion, the platform follows a circular translation while retaining its orientation: vessels do not necessarily rotate about their own axes. Orbit diameter is the diameter of the circular path traced by a platform point; radius is half that value. State the quantity and unit, normally millimetres.

RPM or revolutions per minute here describe orbital cycles per minute, not liquid velocity or independent flask rotation. “Amplitude 10 mm” is ambiguous unless it specifies radius, diameter or another declared travel. Resolve ambiguity in specifications and documentation before comparing equipment.

Equal cycles per minute with different orbits imply different paths. Primary studies by Li, Ducci and Micheletti also connect mixing with geometry and start-up; they do not support a universal “more speed, better result” rule. Their experimental data are not settings to transfer to your sample.

Qualify load, distribution and securing

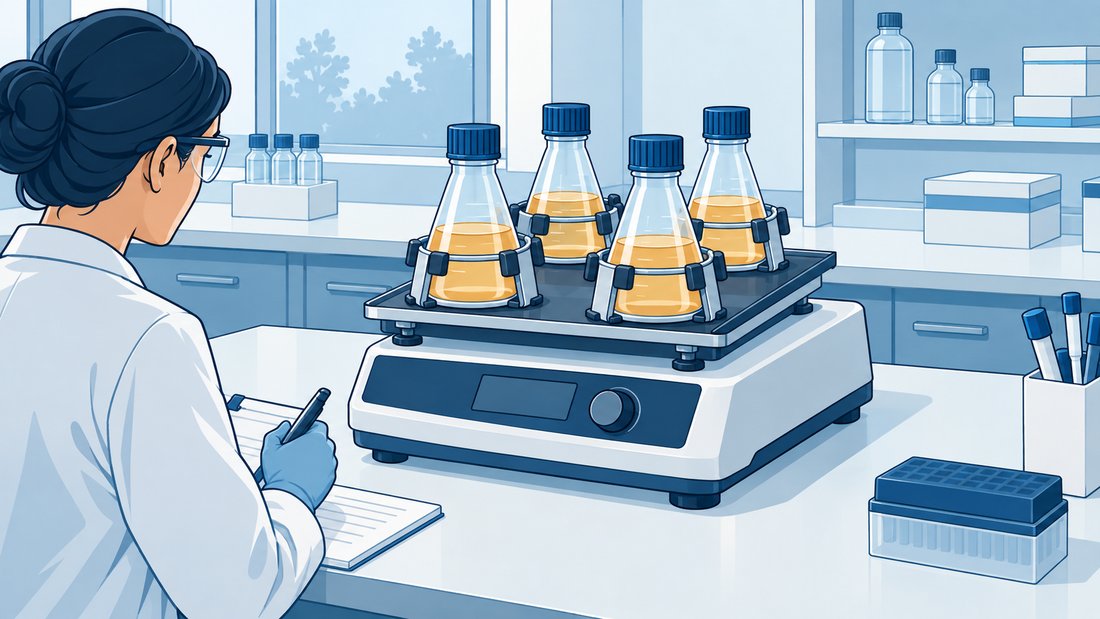

Consider gross load, including vessels, contents, supports and accessories according to the manufacturer’s definition. A mass limit does not authorise every arrangement. Document vessel number and position, securing, format, fill volume and limits applicable to the selected combination.

A nearly empty platform and a densely loaded one may require different assessments. If partial loads are permitted in routine work, include them in the authorised scope. Do not select a hypothetical worst case solely because it contains more liquid: justify which conditions most challenge motion, securing or analytical outcome.

Check supporting surface, stability and clearance around the moving assembly. With the system stopped, inspect support integrity and tightening according to instructions. Do not correct a slipping vessel during motion; stop safely and assess cause, containment and affected samples.

Verify speed, time and motion safely

The display indicates what the system measures or commands according to its design. For independent verification, select a suitable reference and a method compatible with guards and authorised access. Optical measurements or external recordings may be suitable only where the method is defined and cycle identification is reliable.

Do not bring instruments, hands or cables near the moving platform, remove guards or alter interlocks to enable a test. Geometric orbit measurement requires an authorised procedure and competent personnel; if inaccessible, agree another suitable form of evidence rather than inventing a measurement.

Check speed and duration at relevant operating points with intended loads. Define start, stabilisation, observation interval and the end of effective treatment time; record interruptions. Identify references, metrological status, results and uncertainty relevant to the decision. Reference calibration, shaker verification and system qualification are distinct activities.

Assess positions, configurations and relevant temperature

Compare positions and configurations that may affect the application. A map should identify vessels, not merely say “centre” and “edge” without a layout. If the plan groups equivalent configurations, justify why tested conditions are representative and define the limits of that extension.

Where temperature is critical, distinguish indication, chamber air and sample temperature. In an incubated shaker, an air check does not automatically demonstrate the liquid’s complete thermal history. For a non-thermostated instrument, a different method-appropriate strategy may suffice: do not invent a temperature-control function that is absent.

Assess time to the required outcome and the interval before sampling. For suspensions, stopping may rapidly change distribution. Maintain a defined sequence of stopping, any waiting and aliquoting; do not process positions in an order that introduces an unconsidered variable.

Justify criteria, data and release

The following original matrix supports planning. Numerical criteria should follow requirements, relevant performance and measurement capability; they are not automatically the values in a commercial specification.

Preserve original data, conditions, references, deviations and decisions. An acceptable average must not hide a point failing its criterion. If a test fails, investigate and document the intervention before justified repetition. Release should state permitted configurations, restrictions and the person responsible for approval.

Manage maintenance and procedure transfer

Simulated case: two shakers operate at the same RPM but have orbit diameters of 10 and 20 mm, hence radii of 5 and 10 mm. Their motion is not the same. The laboratory compares securing, loads, start-up sequence, aliquot outcomes and stability before transferring preparation. It does not derive a new speed from a simple proportion while assuming analytical equivalence.

Include cleaning, securing checks, faults and maintenance in the equipment plan. After work that can affect motion, or changes to platform, load, vessel or programme, assess which evidence must be repeated. Justify verification intervals using operation, risk and history rather than a universal frequency.

Connect release to the documented preparation workflow. For single-tube treatment, see vortex controls; for related topics visit the liquid handling and sample preparation hub.

Sources and scope

• Li, Ducci and Micheletti, 2019: primary study; accepted manuscript at UCL, no settings transferred.
• OpenStax, Physics 6.2: circular-motion geometry.
• EU GMP Annex 15, 2015: qualification and change framework.
• JCGM 200:2012, VIM: metrological terminology.
• IEC 61010-2-051:2018: public safety-standard scope; full text not used for numerical criteria.
